NBpower/QS273 V3 72v 8000W Ebike kit 150mm Dropout Motorcycle Electric Bike Motor Wheel with Waterproof Sabovon Controller UKC1
Price range: $3,361.41 through $3,490.62
- High-concerned chemical: None
- Mounting Position: Rear Drive
- Design: Brushless
- Wattage: > 1000w
- Voltage: 72 V
- Brand Name: NIBEDU
- Origin: Mainland China
- Motor: Brushless Non-gear Hub Motor

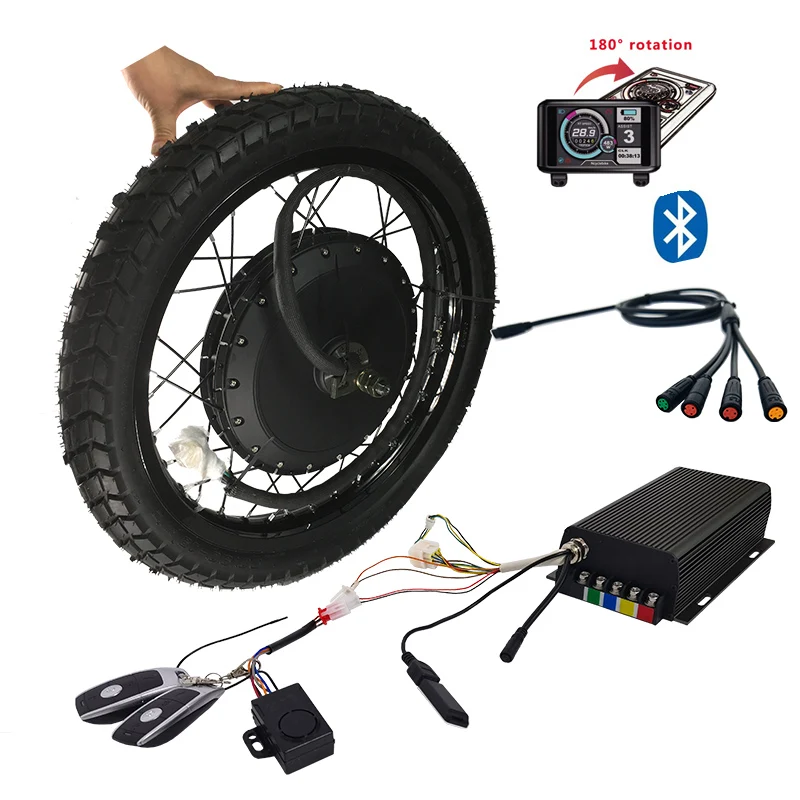

Package Content：
1x QS V3 8000W electric Bike Motor Wheel.The aluminum alloy motorcycle rim. There are 17"18" 19" 21" wheels for choose.
1x Motorcycle Tires.
1x 72v 150A Sabvoton waterproof controller, Programmable. Regen Function
(Notice: the waterproof controller doesn't have PAS wire and 12v output wire to connect brake light)
1x Bluetooth Adapter, program functions, votage, current through the mobile phone App.
1x 1T4 waterproof cable.
1x a pair of Full twist throttle (can change to thumb throttle or half twist throttle if China STOCK)
1x a pair of brake lever
1x UKC1 TFT color display 48v-72v.
1x torque arm
1x alarm&lock
1x single sped flywheel
Difference between 3.5T and 5T : 3.5T is high speed version（Speed reach 120km/h without load at 72V）, 5T is high torque version(Speed reach 70-75km/h without load at 72V). And if you often ride on mountain road or your ebike will load heavy weight, then 5T is better for you.
8000W 273 40H V3 E-spoke hub motor
Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor
Brand: QS Motor,QSMOTOR
Motor Design: Double axle without rim (not integrated), 36 spoke holes, OD 4.2mm
Matching Rim size: 24inch, 26inch E-Bike Wheel, 17inch, 18inch, 19inch moped wheel.
Magnet Height: 40mm, 16 pole pairs
Stator: Aluminmum Core
Rated Power: 8000W
Rated Voltage: 72V as default
Max Speed: 130KPH
kV: 11.46/12.46/13.54/15.69/17.71etc.
Max Torque: approx 250N.m
Max Efficiency: 86-91%
Suggest Peak Phase Current: 196-245A (depend on the kV)
Thermic Probe: KTY83/122 (as default, optional)
Working Temperature: 70-120℃ , peak 150 ℃
Brake type: Bike Disc brake, PCD6*44mm(as default)
Drop-outs/Rear Fork Width for installation: 150mm
Dual Hall Set with waterproof connectors
10mm⊃2; Cross Section of Phase Wire (not include insulation layer)
Hall Sensor Phasing angle: 120 degree
Waterproof Grade: IP54
