QSMOTOR 165 50H 10KW Mid-drive PMSM Motor kit For Electric Moped Dirt Bike with Fardriver ND72850/721200 Controller Foot Pedal

Key Features

1) Light weight and small dimension compare to hub motor
2) High performance benefit from flux weakening
3) High efficiency during climbing, and better acceleration
4) Support regenerative braking

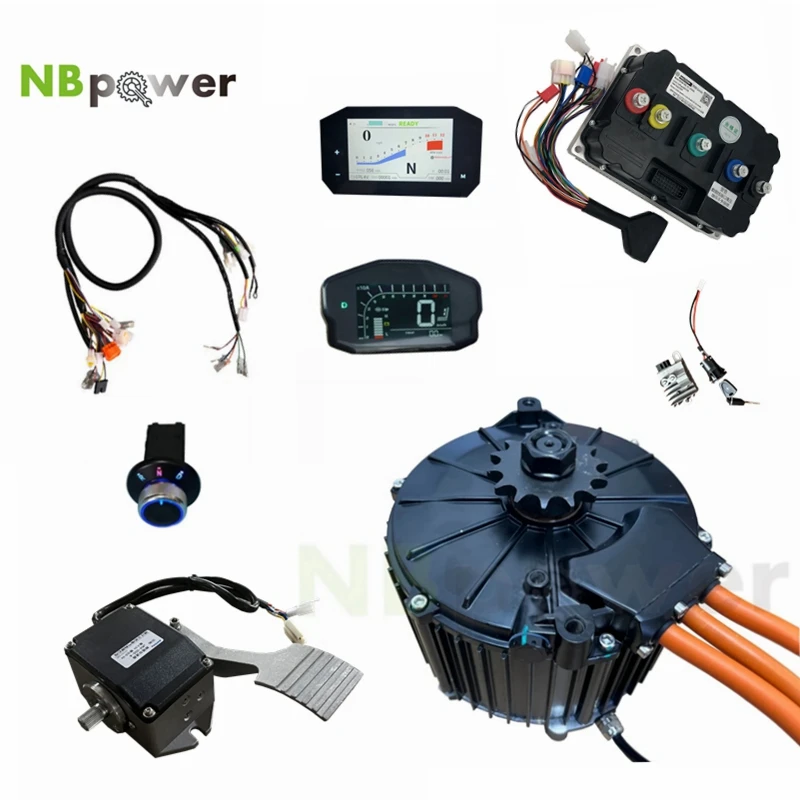

Package list:

1*QS165 50H 10kW mid drive motor with sprocket

1*Fardriver controller

1*Bluetooth module(as default) for Cell Phone

1*DKD display or NBTFT-5 display

1*mainline

1*foot pedal with DNR(R is reverse,N is level-2,D is level-3)

1*12v dc converter

1*ignition

1*flasher

Controller SPEC

1 Model: ND72850

2 Working Communication: Encoder Sensor or hall

3 Available Rated Battery Voltage: 48V/60V/72V

4 Peak Battery Voltage: 88V

5 Available Motor Power: 8000W

6 Defaut Throttle Working Voltage: 0V – 5V

7 Peak DC Current: 450A

8 Peak Phase Current: 800A – 850A

9 Mosfets Detail: 42 FET

10 Weight: 3.5kgs

11 Instaliing Size: 222mm * 142mm * 71mm

12 Controller Design: Sine Wave BLDC

13 Case Material: Aluminum

14 SupportProgrammable: PC & Phone

15 Suitable for electric bike, scooter, motorcycle, tricycle, kart, ATV

————————–

1 Model: ND721200 Fardriver controller

2 Working Communication: Encoder Sensor
or hall

3 Available Rated Battery Voltage: 72V

4 Peak Battery Voltage: 100V

5 Available Motor Power: 10KW – 12KW

6 Default Throttle Working Voltage: 0V – 5V

7 Peak DC Current: 500A – 600A

8 Peak Phase Current: 1200A

9 Mosfets Detail: 60 FET

10 Weight: 5kgs

11 Installing Size: 238mm * 155mm * 72mm

12 Controller Design: Sine Wave BLDC

13 Case Material: Aluminum

14 Support Programmable: PC & Phone

15 Suitable for electric bike, scooter, motorcycle, tricycle, kart, ATV
