DYISLAND LD200PLUS 2Pistons E-Bike Hydraulic Disc Brake Set 2PIN Power-Off Electric Induction Control System Hydraulic Brake Set

DYISLAND LD200PLUS 2Piston E-Bike Hydraulic Disc Brake 2- PIN Power-Off Electric Induction Control System Hydraulic Brake Set

Please note:The left handle controls the front brake, and the right handle controls the rear brake；The brake can only be installed on the left side

Tip: The hose has already been filled with mineral oil and does not need to be refilled

Brand: DYISLAND

Material: Aluminum alloy

Production process: CNC machining

Weight: 1600g

Hose length: front Hose 1000mm (39.37 inches), rear Hose length1850mm (72.83 inches）

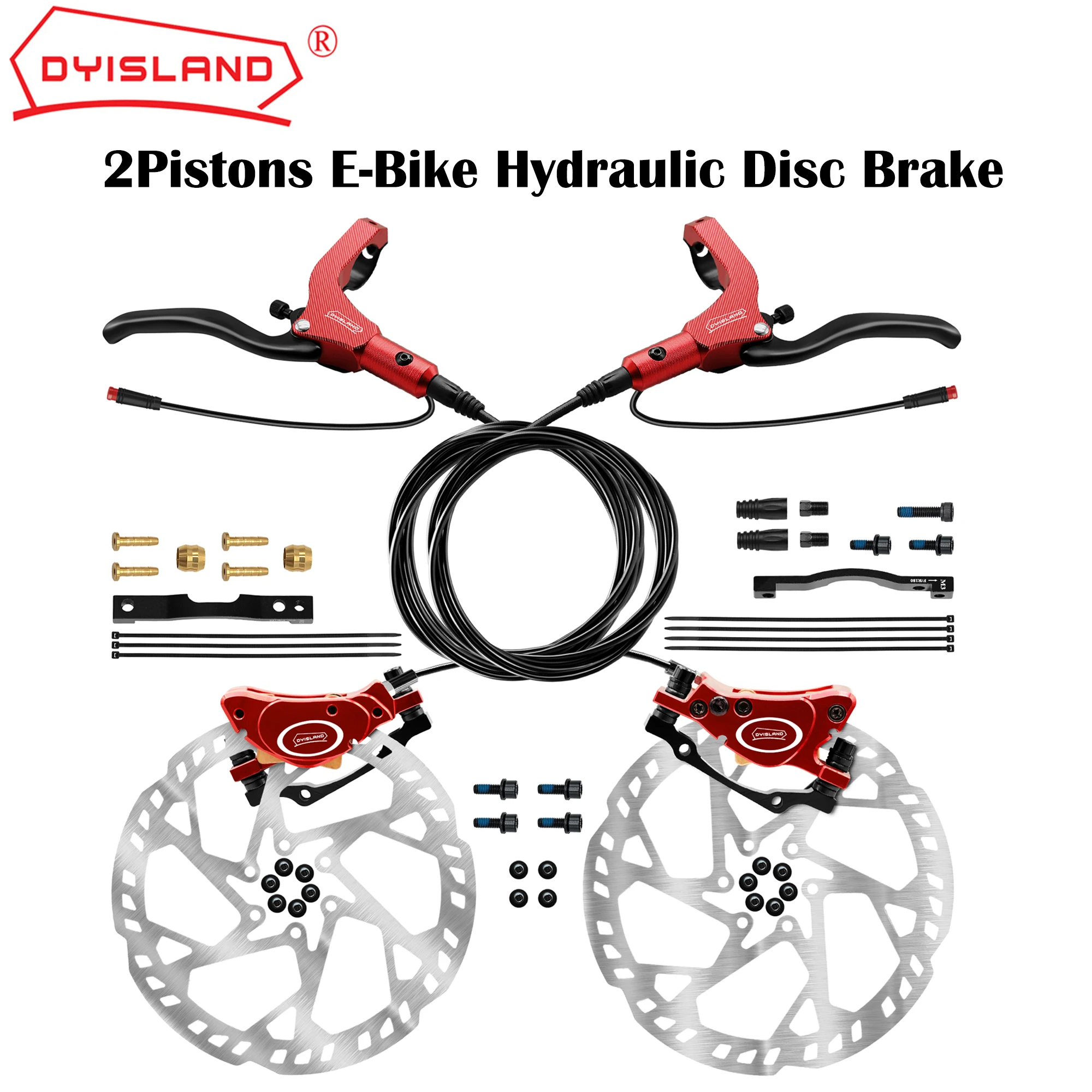

KIT INCLUDES：E-bike hydraulic brakes (A set of brake levers, a set of brakes, two 2.3mm thick, 180mm diameter brake rotor）Three mounting adapters（Please refer to the detail page for the hole spacing of the adapter） and two sets of mounting screws.

ELECTRIC INDUCTION CONTROL SYSTEM：Use detachable power-off sensor, the sensor receives a signal when braking and cuts off the power output of the motor to ensure safe riding, the cable length is 300mm (11.8in), Use 2-pin waterproof connector. 【Hint】Check the wiring port is matched.

【IMPORTANT NOTE】The front brake left handle control brake hose is 1000mm(39.5inch) long, the rear brake right handle control brake hose is 1850mm(73inch) long,the hoses are pre-filled with environmentally friendly mineral oil, no need to bleed to use；The rear caliper hose and control lever are separated for easy internal routing.

【ADJUSTMENT FUNCTION】The brake handle has a screw adjustment function, which allows you to adjust the travel distance of the brake lever according to your personal needs, providing a more comfortable and flexible braking operation and obtaining the best braking feeling.

【MANUFACTURING MATERIAL】CNC Manufacturing Process, closed system . Caliper: CNC aluminum caliper (dual piston: use non-corrosive mineral brake fluid) Brake disc: high manganese 410 stainless steel. Fuel line: nylon + preparation yarn + PBT inner tube.

【BRAKE PERFORMANCE AND DURABILITY 100%】Brake disc thickened design: thickness 2.3mm (ordinary brake disc 1.8mm) Brake pads thickened and enlarged design: MT600 sintered metal material, friction area: 34.7mm long by 20mm wide by 3mm high (ordinary 26mm long by 15mm wide by 1.9mm high), providing stronger braking effect and longer lasting durability for your riding.

Please note: Before purchasing the product, please confirm that your frame is compatible with the installation of this product
