SHIMANO SLX M7100 Crankset 1X12Speed MTB Bike Chainwheel FC-M7100 170mm 175mm 32T 34T MT501 MT801 MT800-PA Bottom Bracket Bike
Price range: $303.92 through $487.43
- High-concerned chemical: None
- Type: Bicycle Chainwheel
- Model Number: M7100
- Use: Mountain Bikes
- Material: Aluminum alloy
- Category: Suit
- Brand Name: SHIMANO
- Origin: Jp(origin)
Note:If you choose the option "Without BB",it means that bottom bracket is not included in the products you bought.

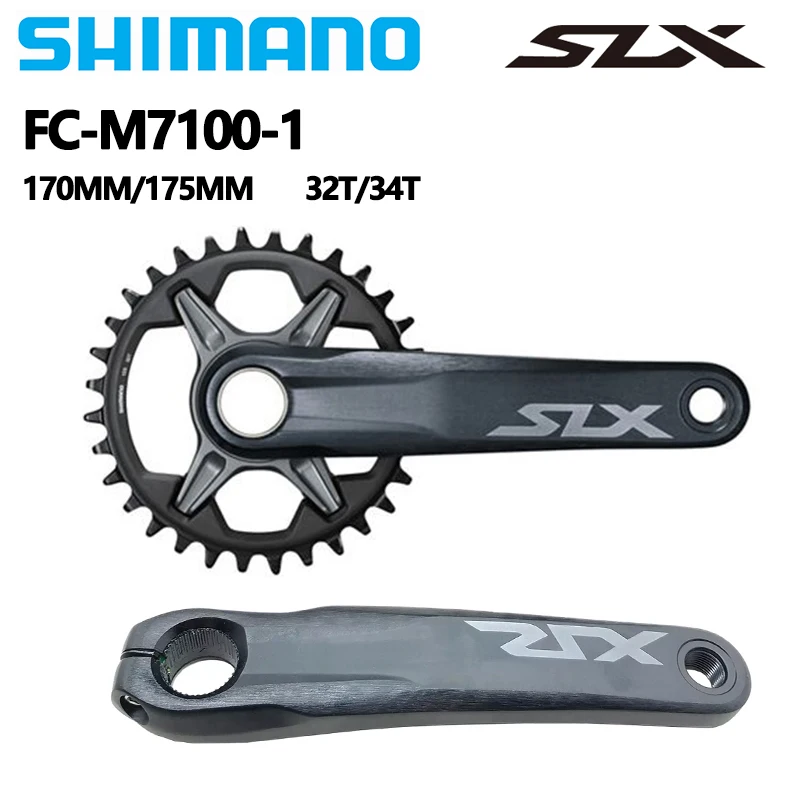

SLX HOLLOWTECH II MTB Crankset 172 mm Q-Factor 1×12-speed
FC-M7100-1
SLX – HOLLOWTECH II – MTB Crankset – 172 mm Q-Factor – 1×12-speed
The SLX FC-M7100-1 crank features an entirely new construction, using direct mount chainrings, special gear tooth profile for improved chain retention, and a 172mm Q-factor.
FEATURES
Superior chain retention
Special MTB gear teeth profile improves chain engagement and retention
DYNAMIC CHAIN ENGAGEMENT+
Rigid and lightweight design boosts trail-riding enjoyment

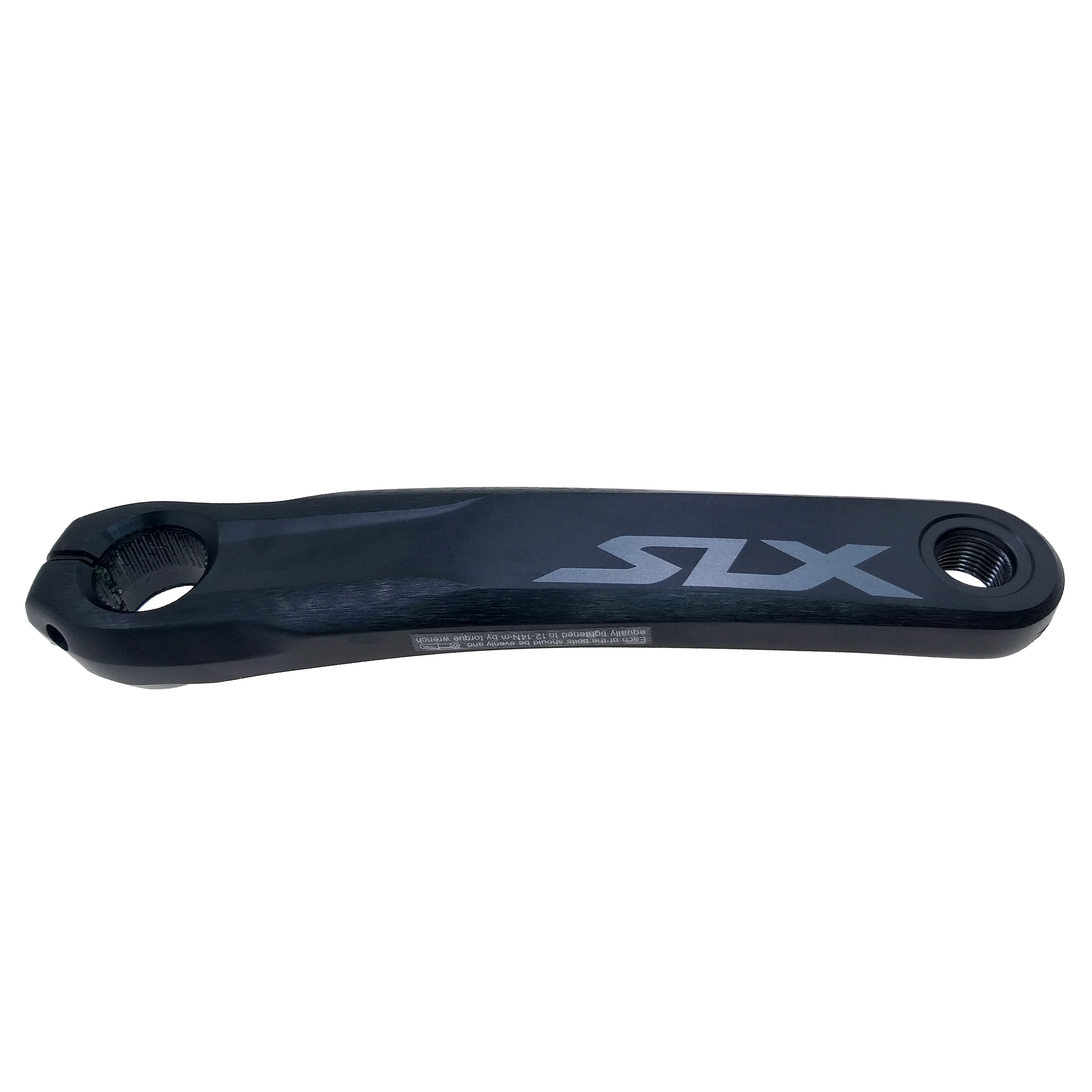

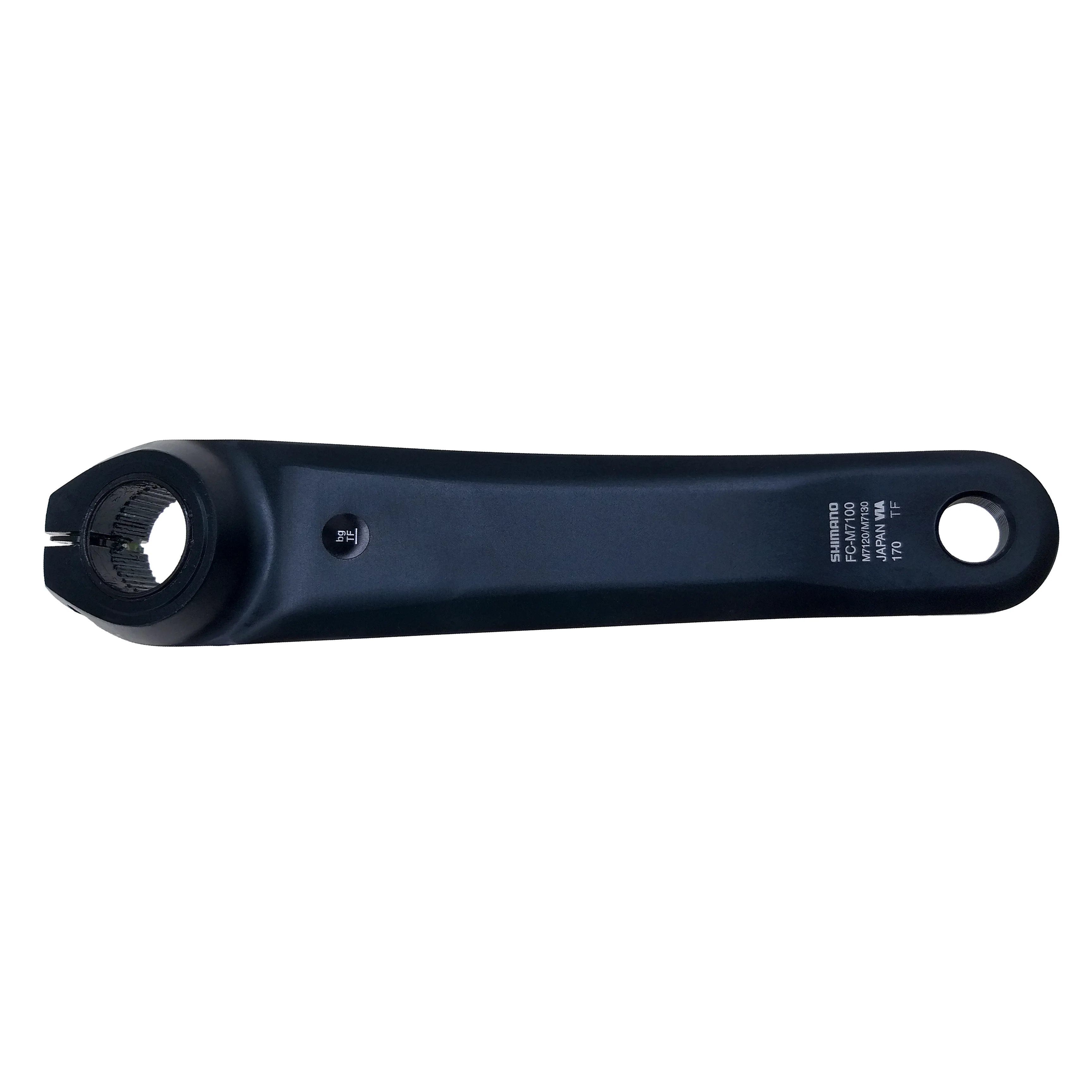

Hollow forged crank maximizes power transfer while limiting weight
HOLLOWTECH II
Easier gearing than racing groupsets
Q-factor: 172 mm
Chainline: 52 mm
PRODUCT SPECIFICATIONS
MODEL NO FC-M7100-1
SERIES SLX M7100 Series
Color Series color
Average weight 634 (30T) 631 (32T) 646 (34T)
Rear speeds 12
Compatible chain HG 12-speed
Chain line (mm) 52
O.L.D.|Thru (mm) 142, 148
O.L.D.|QR/Nut (mm) 135, 141
P.C.D. (mm) Direct
Spider/gear arms 4
Chainring combination 30T, 32T, 34T
Q-factor (mm) 172
Crank arm length (mm)|165 ✔
Crank arm length (mm)|170 ✔
Crank arm length (mm)|175 ✔
Optional chain guard|Without chain/bash guard ✔
HOLLOWTECH II ✔
Compatible bottom bracket type|Outboard ✔
Recommended bottom bracket|Threaded (normal) BB-MT801
Recommended bottom bracket|Press-Fit BB-MT800-PA
Threaded bottom bracket shell width (mm)|68 ✔
Threaded bottom bracket shell width (mm)|73 ✔
Crank fixing screw included ✔
TECHNOLOGIES
dynamic_chain_engagement_plus
hollowtech
hg
SHIMANO Threaded Bottom Bracket 68/73 mm shell width
BB-MT501
SHIMANO – Bottom Bracket – Threaded – HOLLOWTECH II – 68/73 mm shell width
With better sealing and rotation the SHIMANO DEORE bottom bracket delivers high driving efficiency.
FEATURES
Better sealing performance
PRODUCT SPECIFICATIONS
MODEL NO BB-MT501
SERIES SHIMANO
HOLLOWTECH II bottom bracket|Threaded bottom bracket type ✔
Threaded bottom bracket shell width (mm)|68 ✔
Threaded bottom bracket shell width (mm)|73 ✔
TECHNOLOGIES
hollowtech
SHIMANO DEORE XT Threaded Bottom Bracket 68/73 mm shell width
BB-MT801
SHIMANO DEORE XT – Bottom Bracket – Threaded – HOLLOWTECH II – 68/73 mm shell width
For SHIMANO 24mm MTB cranks, the SHIMANO DEORE XT bottom bracket uses high quality sealed bearings and is offered in threaded and pressfit options.
PRODUCT SPECIFICATIONS
MODEL NO BB-MT801
SERIES SLX M7100 Series
Average weight 84
HOLLOWTECH II bottom bracket|Threaded bottom bracket type ✔
Threaded bottom bracket shell width (mm)|68 ✔
Threaded bottom bracket shell width (mm)|73 ✔
TECHNOLOGIES
hollowtech
SHIMANO DEORE XT Press-Fit Bottom Bracket 89.5/92 mm shell width
BB-MT800-PA
SHIMANO DEORE XT – Bottom Bracket – Press-Fit – HOLLOWTECH II – 89.5/92 mm shell width
For SHIMANO 24mm MTB cranks, the SHIMANO DEORE XT bottom bracket uses high quality sealed bearings and is offered in threaded and pressfit options.
PRODUCT SPECIFICATIONS
MODEL NO BB-MT800-PA
SERIES SLX M7100 Series
Average weight 69
HOLLOWTECH II bottom bracket|Press-Fit type ✔
Press-Fit bottom bracket shell width (mm)|89.5 ✔
Press-Fit bottom bracket shell width (mm)|92 ✔Close
TECHNOLOGIES
press_fit_bottom_bracket
