ZOOM HB-876E E-Bike 4-Piston Hydraulic Disc Brake Set Electric Scooter Folding Mtb Bike Power Off ebrake
Price range: $227.18 through $231.53
- High-concerned chemical: None
- Braking System: Hydraulic Disc Brake (Hydraulic Brake Pad)
- Brand Name: ZOOM
- Origin: Mainland China
Model Number : HB876E
Size : 1100-1850MM
Braking System : Hydraulic Disc Brake (Hydraulic Brake Pad)
Components : Disc Brake
Origin : Mainland China

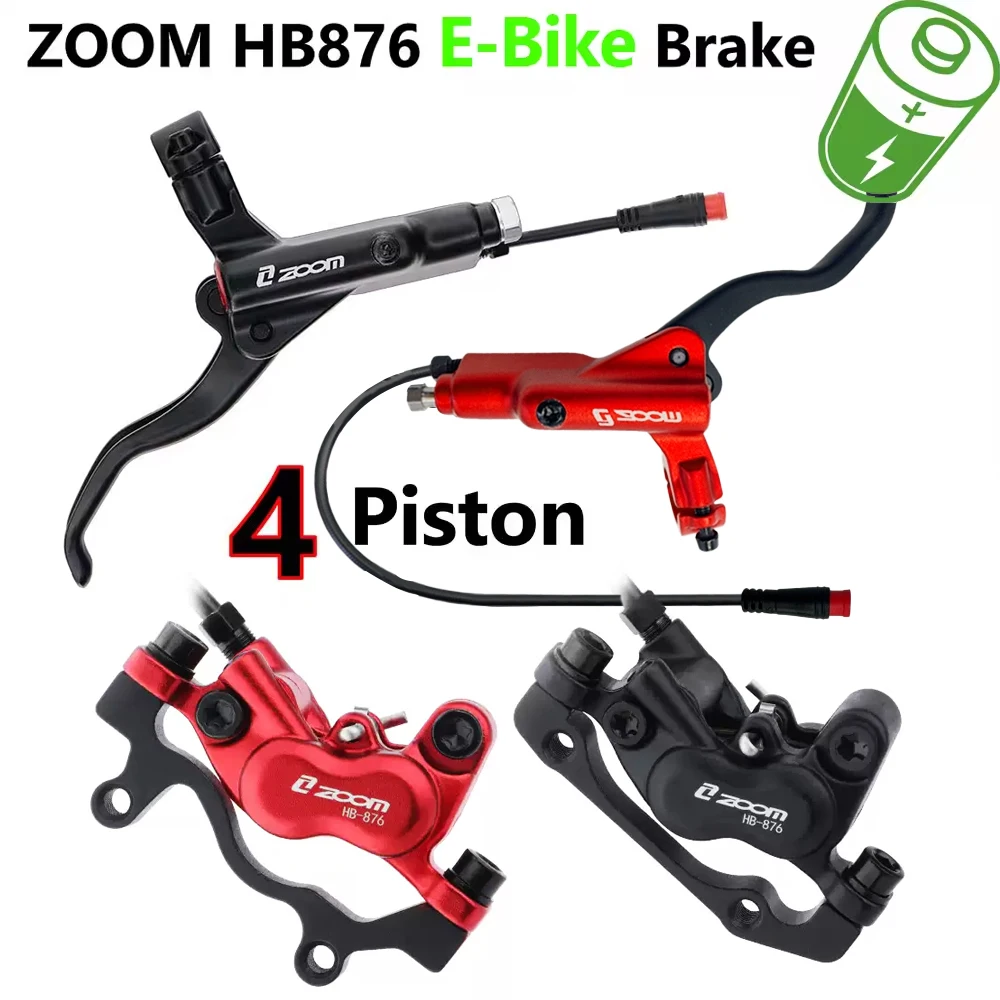

ZOOM HB-876E 4-Piston Hydraulic Disc Brake Set For Electric Scooter Folding Bike
Brand: ZOOM
Name: Hydraulic Disc Brake
Model: HB876-E
Pistons: 4 pistons
Application: 160mm rotor/180mm rotor
Adapter Specification:
F160-R140/F180-R160 OR IS-A 180MM /PM-B 180MM
Weight: 738g(without rotor)
Tubing length: Front=1100mm Rear=1850mm
Features: Integrated molding oil cylinder
Four pistons
Installation note:
The brake lever has been filled with oil.
【1】Do not Press the brake lever before or during the installation process,which will cause oil leakage, otherwise it needs to be refilled mineral oil. The brake lever can only be press after the brake is fully installed. The oil in the brake lever will flow into the caliper through the oil pipe.
【2】The mold block (brake pad protection block) inside the caliper should not be removed before the brake is installed.When not fully installed, if the mold block is removed, the piston will shift, which may cause oil leakage or the brake piston may not rebound in place
