SHIMANO Original Disc Brake Adapter PM A Pillar Disc Brake Bracket For 180mm 203mm Rotor RT86 RT81 RT56 F180P/P2 F203P/PM

Name: SHIMANO Original Disc Brake Adapter PM A Pillar Disc Brake Bracket For 180mm 203mm Rotor RT86 RT81 RT56 F180P/P2 F203P/PM
SKU: 1005005417490451

HOME / PRODUCTS / SHIMANO Original Disc Brake Adapter PM A Pillar Disc Brake Bracket For 180mm 203mm Rotor RT86 RT81 RT56 F180P/P2 F203P/PM

Shimano Rotor Disc Adapters And Hardware Kit

Price range: $14.36 through $23.15

Backed by our Zoomies Guarantee

Spend $150 after offers & coupons and we cover the shipping, no matter how large your order is!

Welcome coupon & Points are deferred during sales.

Secure & Private Transaction Sold & Shipped by Zoomies

FREE SHIPPING

OVER $1000

SECURE

CHECKOUT

GUARANTEED

AUTHENTIC

REFERALS

GET REWARDED

Description +

High-concerned chemical: None
Model Number: SM-MA90-F180P/P2
Size: 180/203mm
Use: Mountain Bikes
Material: aluminum
Braking System: Hydraulic Disc Brake (Hydraulic Brake Pad)
Components: Disc Brake
Brand Name: SHIMANO
Origin: ID(Origin)

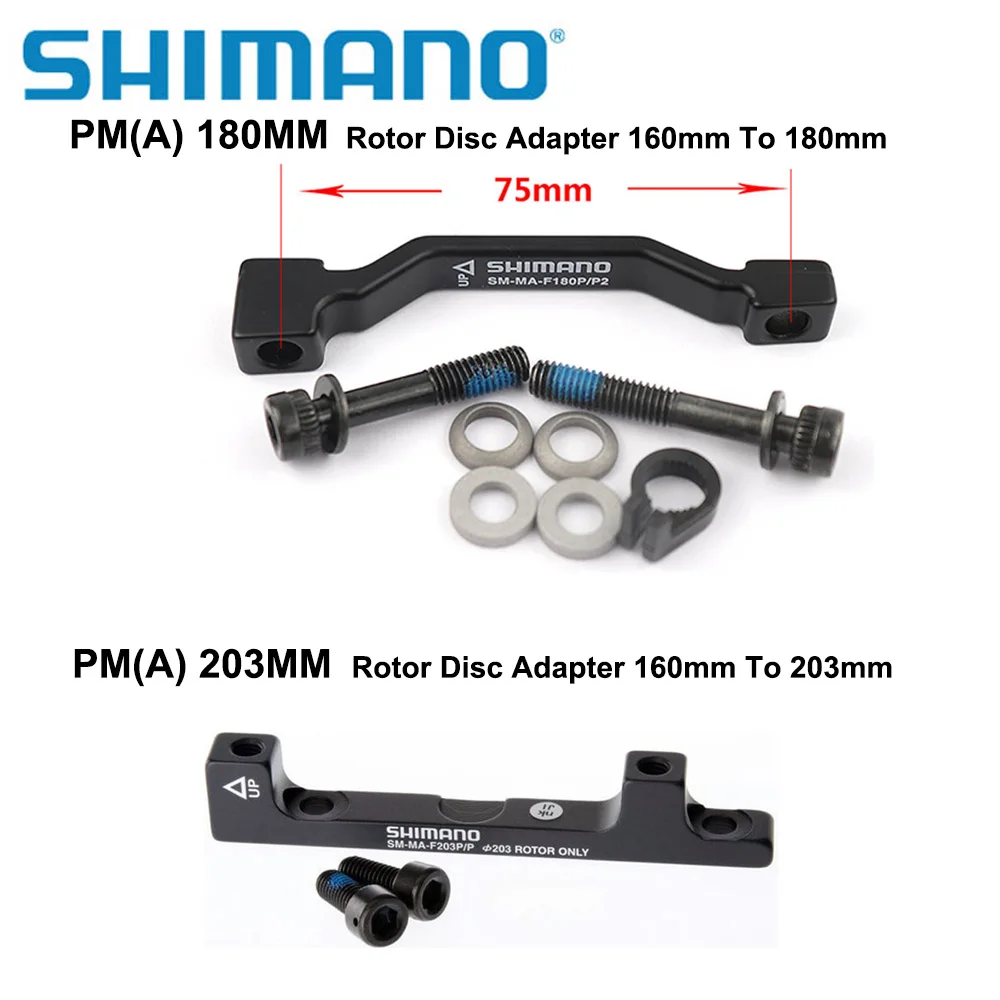

This is the Shimano SM-MA Front 180mm P/P Disc Brake Mount Adapter.

Features:

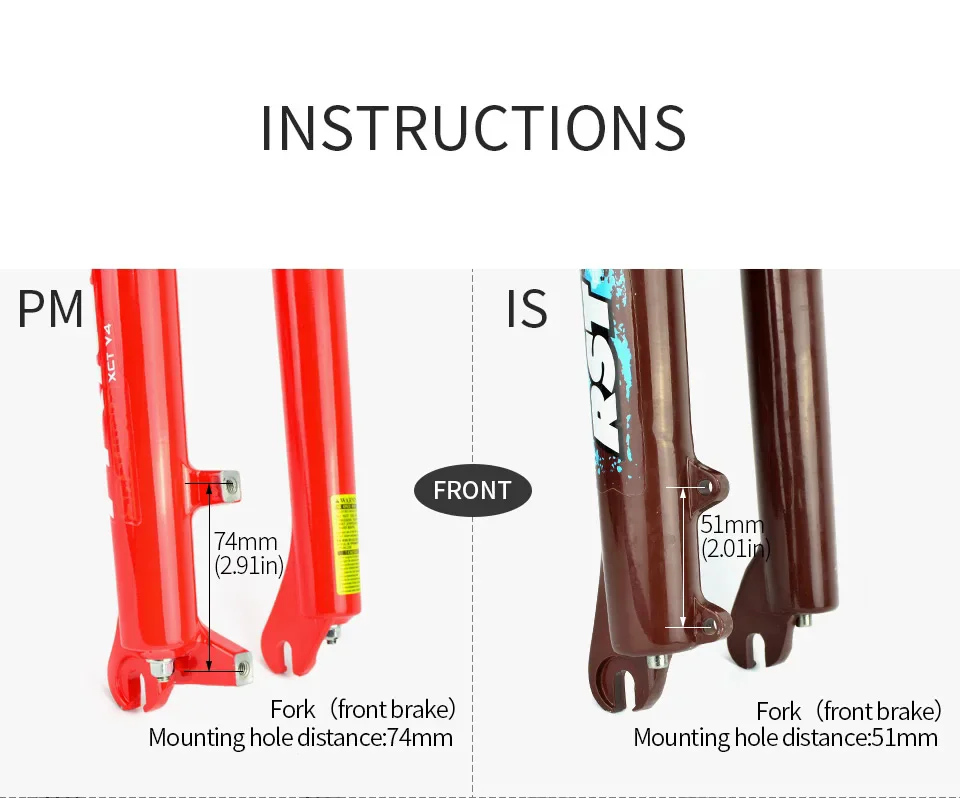

For 74mm caliper on 74mm fork with 180mm rotor
Material: aluminum
Brake caliper: Postmount

The adapter can be used as follows:

140 mm fork mount:
SM-MA-F180P/P2 – for using a 160 mm brake disc

160 mm fork mount:
SM-MA-F180P/P2 – for using a 180 mm brake disc

SM-MA-F203P/P2 – for using a 203 mm brake disc

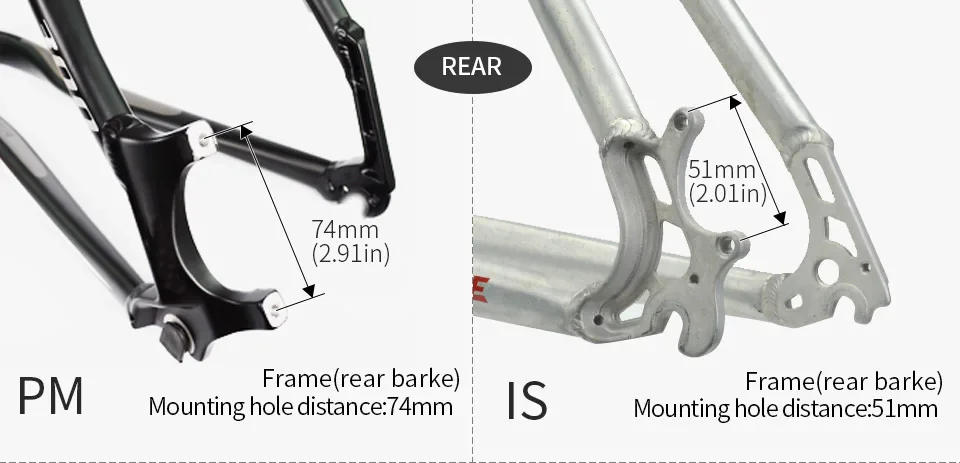

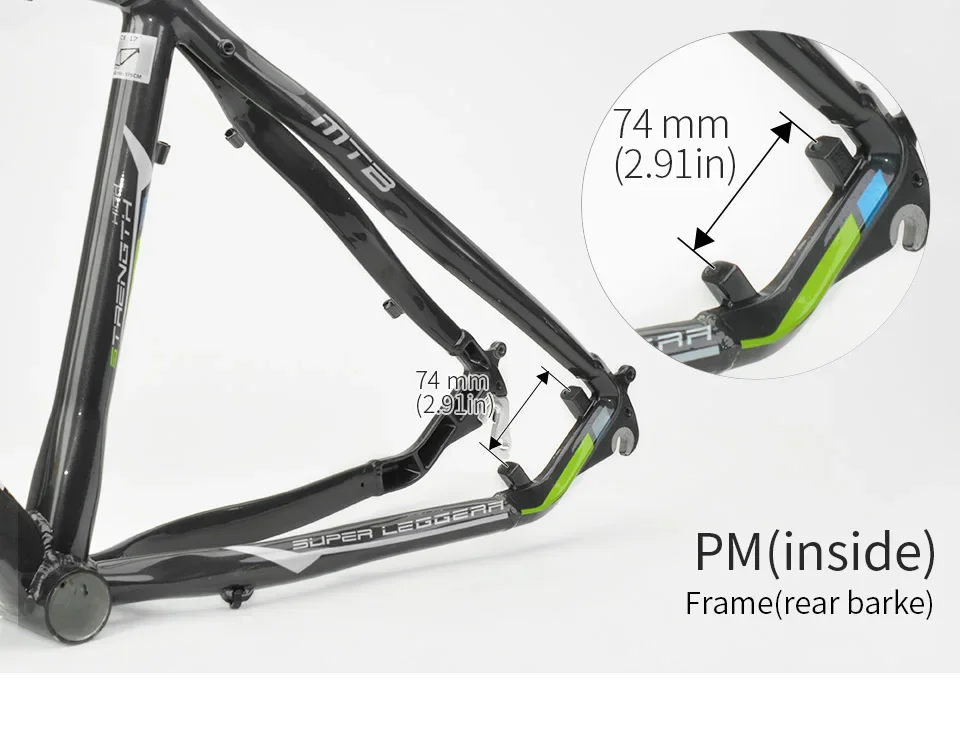

140 mm frame mount:
SM-MA-F180P/P2 – for using a 160 mm brake disc

160 mm frame mount:
SM-MA-F180P/P2 – for using a 180 mm brake disc

frame with 180 mm mount:
SM-MA-F203P/P2 for the use of a 203 mm brake disc

Note: For using a 203 mm brake disc at an 180 mm frame mount, the separately sold "Shimano XTR SM-MA90 Adapter" (SM-MA90-F203P/P) is required.

The offered adapters are not compatible to the following brake calipers:
BR-M965
BR-M755
HOPE Tech 3 E4 caliper
