Sabvoton MQ Controller 48V 60V 72V 100A 3000W-5000W For QS 205 50H V3 Bike Motor

Name: Sabvoton MQ Controller 48V 60V 72V 100A 3000W-5000W For QS 205 50H V3 Bike Motor
SKU: 1005005388926022

HOME / PRODUCTS / Sabvoton MQ Controller 48V 60V 72V 100A 3000W-5000W For QS 205 50H V3 Bike Motor

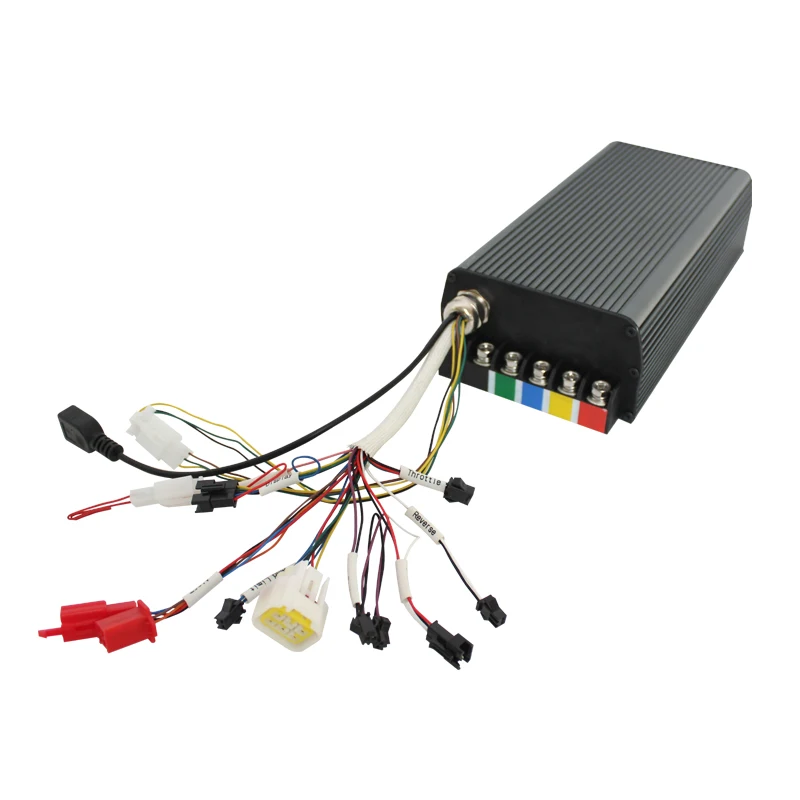

Electric Controller With Multiple Wiring Connections

Price range: $832.70 through $904.37

Backed by our Zoomies Guarantee

Spend $150 after offers & coupons and we cover the shipping, no matter how large your order is!

Welcome coupon & Points are deferred during sales.

Secure & Private Transaction Sold & Shipped by Zoomies

FREE SHIPPING

OVER $1000

SECURE

CHECKOUT

GUARANTEED

AUTHENTIC

REFERALS

GET REWARDED

Description +

High-concerned chemical: None
Type: Controller
Origin: Mainland China
Controller Voltage: 48V 60V 72V
Max Current of Controller: 100A
MOSFET: 24 MOSFET
Controller Power: 3000-5000W
Display Voltage: 36V 48V 60V 72V
Accessories: USB/Buletooth

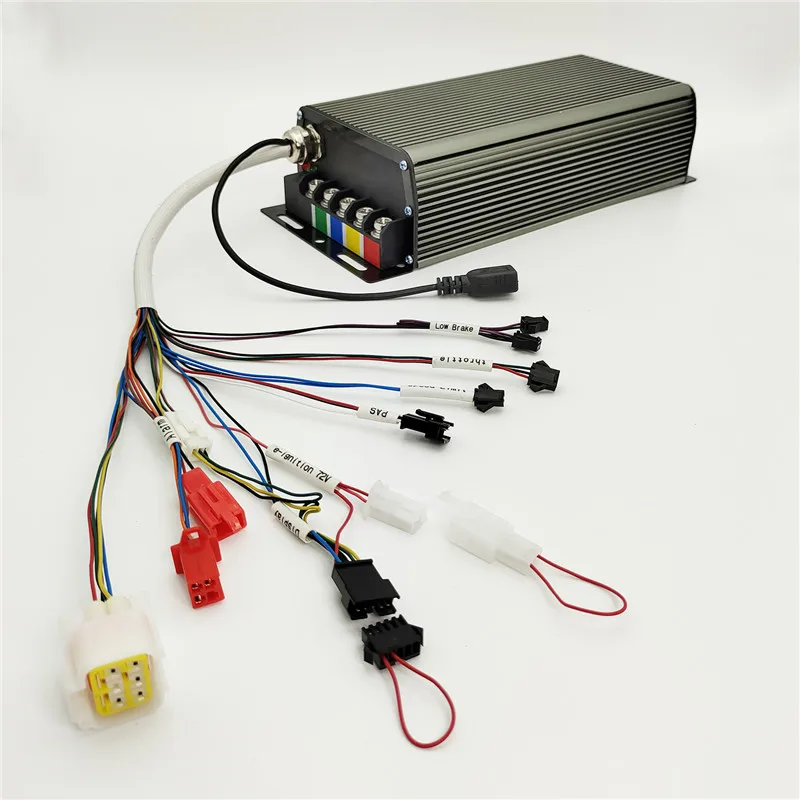

High Power Intelligent Programmable 48V 60V 72V 100A 3000W-5000W Sine Wave Controller For eBike Electric Bike

Package Includes:

1. 100A 48V, 60V, 72V Universal Voltage 5000W-7500W Intelligent Programmable Sine Wave Controller

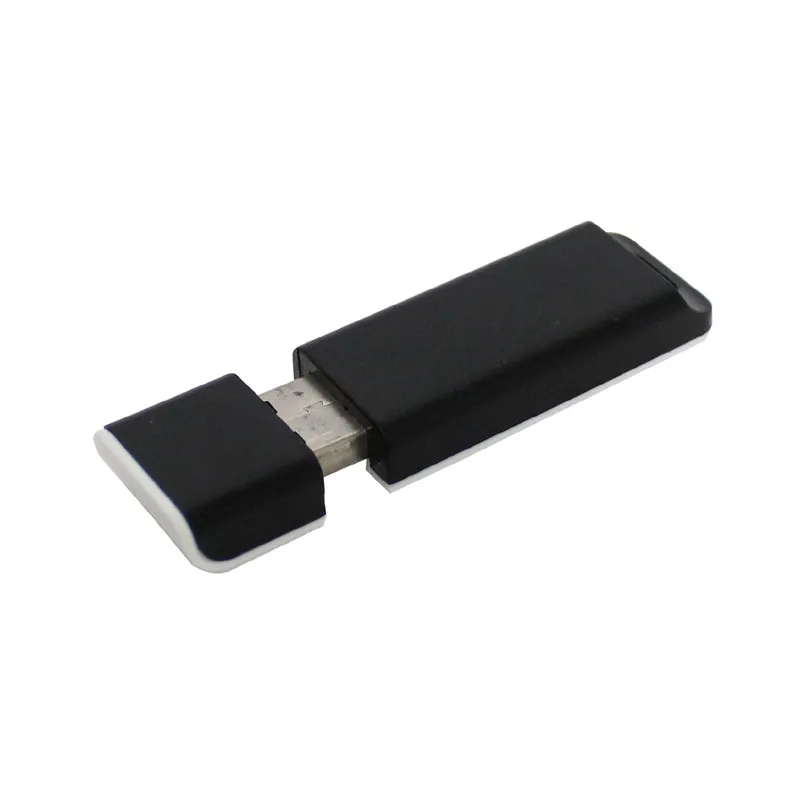

2. USB Data(set parameter by computer)Or Buletooth(set parameter by mobile)

3. Light Connection Adapter Cable (From "O" ring to SM-2A Plug)

4. Hall Sensor Adapter Cable (from DJ7061Y-2.3-21 to DJ7061-2.8-21 Plug)

5. Battery Power Adapter Cable (From "O" ring to Anderson Plug)

Advantage:

1.Programmable Sine Wave Controller which support big current and smart match with
each motor through self-learning, works with high efficiency, less
noise, and lower energy consumption, which makes your electric vehicles
or electric motorcycles more comfortable and easier to control, give youbest pedal experience

2.Motor torque ripple is reduced to minimum through FOC, more smooth and comfortable

3.Universal Input Voltage Range: 48V/60V/72V

4.Work with or without display

5.Parameter setting via Mobile Phone App or Computer

6.Allprotection make it long life and safe: over/under voltage, over
current, over load, over heating, anti-runaway, locked-motor protection

7.Multifunctions: Smart match with different motor, 5-speed level for throttleand PAS, Speed limit, anti-thief, Regenerative Braking, Electric
Braking, Keyless start and etc.

8.Best heat sinking with thicker Heat sink Aluminium Plate

9.Anodized Aluminium Controller Case against scratch

Technical Data:

General Specification:

1. Power supply: 48V/60V/72V, MAX DC current: 100A, Max phase current: 250A

2. Rated Power: 48V 3300W/ 60V 4200W/ 72V 5000W

3. Peak Power: 48V 4800W/ 60V 6000W/ 72V 7200W

4. Low Voltage Protection: 40V/50V/60V

5. Brake: Low Voltage Brake

6. Alarm: Low Voltage Alarm

7. Rotor Position Detecting Method: Hall sensor

8. Mobile phone App or computer software can communicate with the controller to modify parameter
