NBpower 20/24/26×4.0 48-72v 2000W Fat Bike Kit Front 135mm/Rear 170 190mm Dropout EBike Hub Motor Electric Bicycle Motor Wheel
$812.93
- High-concerned chemical: None
- Size: 20 inch
- Mounting Position: Rear Drive
- Design: Brushless
- Wattage: > 1000w
- Voltage: 72 V
- Brand Name: NIBEDU
- Origin: Mainland China
- Motor: Brushless Non-gear Hub Motor
- power: 2000w
- voltage: 48-72v
- rear dropout: 170mm 190mm
- front dropout: 135mm
48-72v 2000W Front / Rear Fat Bike Kit 2000w Hub Motor EBike Kit Electric Bicycle Conversion Kit Front 135mm/ Rear 170mm 190mm Dropout Fat Bike Kit
Packaging list for the electric fat bike kit 2000w 72v:

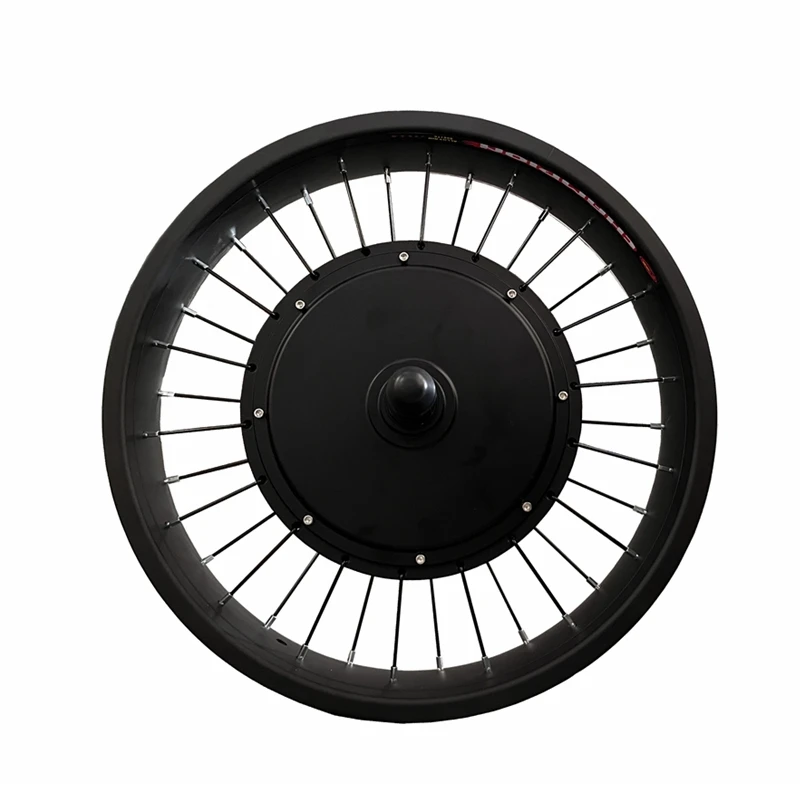

48-72v(Rated 72v) 2000w 135mm front or 170mm 190mm rear hub motor wheel 20×4.0/24×4.0/26×4.0, rim width 80mm by default (if want 100mm rim please contact us)
Product Details
Motor Specification:
1. Motor Type: BLDC Hub Motor with Permanent Magnet
2. Motor design: Double axle out
3. Spoke hole: 3.4mm x 36pcs
4. Matching Rim:16inch-29inch
5. Rated Power:2000W
6. Peak Power:4000W
7. Rated Voltage: 72V(Can be optional)
8. Speed: 70km/h
9. Max No-load RPM:700RPM
10. Max Torque:100N.M
11. Max Efficiency: 88%
12. Brake type: Disc brake
13. Rear Fork width for installation: 170 or 190mm, front 135mm
14. Winding Core material: Steel
15. Cross Section of Phase wire: 6 mm2
16. Hall sensor phasing angle: 120 degree
17. Max. Working Temperature: 70 degree, Peak 120 degree
18. Waterproof Grade: IP54
