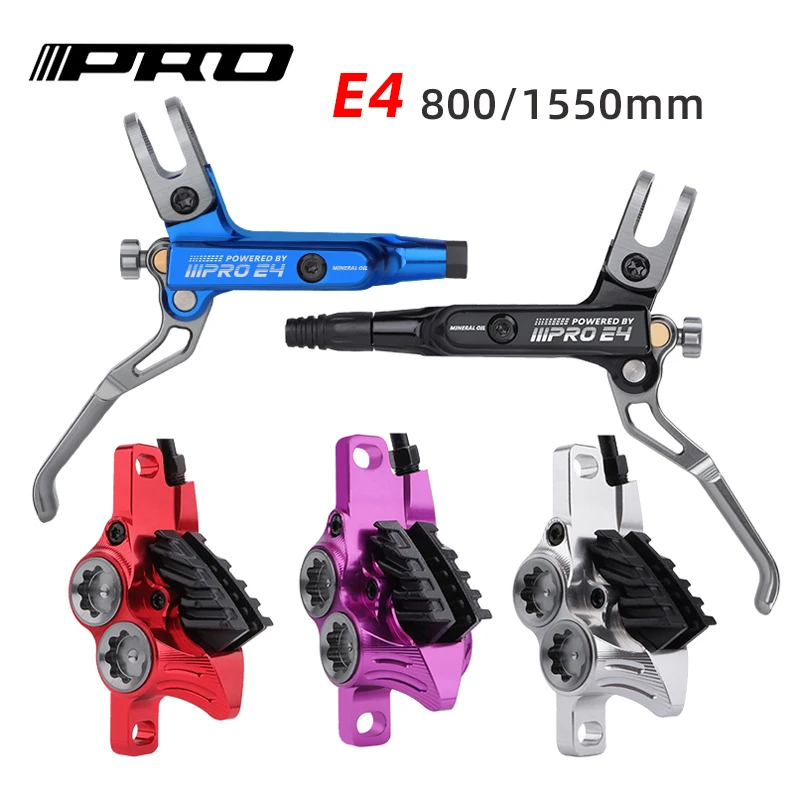

IIIPRO E4 Mountain Bike Hydraulic Brake 800/1550mm Front Rear Brake Cooling 4 Piston Oil Pressure AM DH E-bike MTB Disc Brake

Brand: IIIPRO
Model: E4
Color: black, red, silver, blue, green, purple
Material: magnesium aluminum alloy
Length:
Front brake 800mm;
Rear brake 1550mm

Brake Pistons: 4 Pistons

Brake Fluid Type: Mineral Brake Fluid

Weight:
about 230g for the front brake;
about 245g for the rear brake;
about 28g for the screw.

Brake For: mountain bikes, DH，AM，folding bikes, etc.

The brakes are the left front brake and the right rear brake

Left hand controls the front brake, right hand controls the rear brake.

4 Piston brake

Smooth and even braking

Cooling brake pads

The multi-metal copper-based ceramic heat sink improves the heat dissipation performance by 25%.

①Cylinder block
②M6 oil filling screw
③CNC anti-skid vent brake lever
④Built-in bearing
⑤ Travel adjustment screw
⑥22.2mm detachable clamp ring

The rear brake adopts the cable routing inside the frame, and the brake lever/caliper has a split structure.

German TUV safety certification, the measured braking force can reach 641N.
