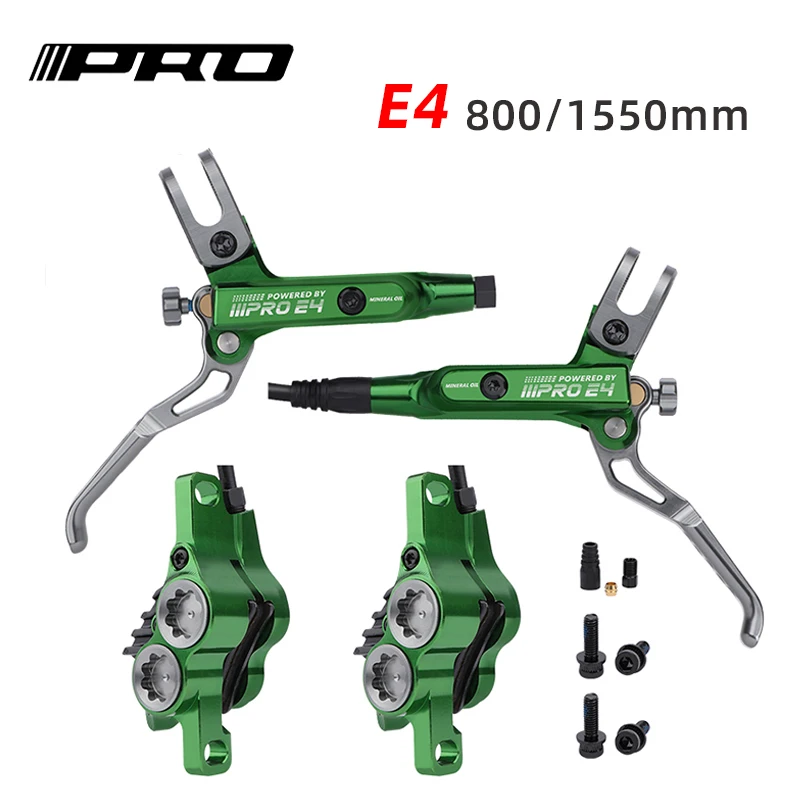

IIIPRO E4 800/1550mm Mountain Bike Hydraulic Disc Brake Front and Rear Brake Cooling 4 Piston Oil Pressure AM DH Electric Bike

Brand: IIIPRO
Model: E4

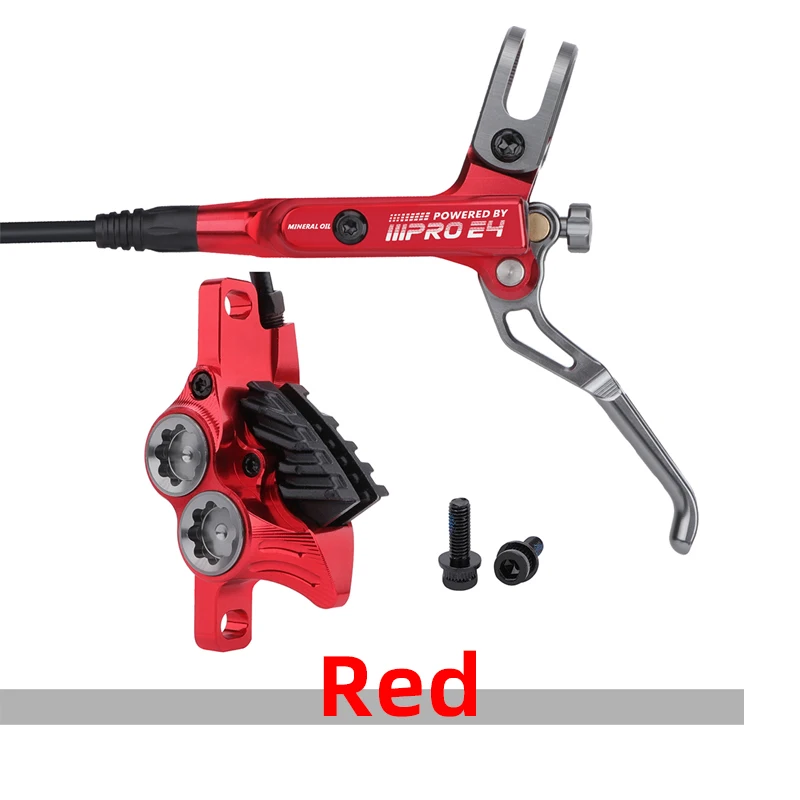

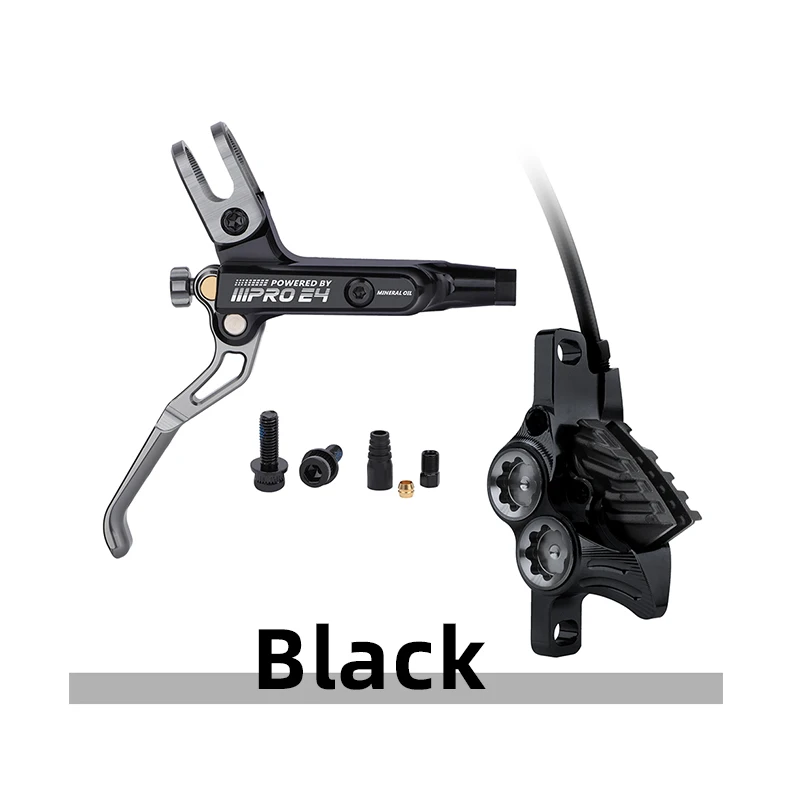

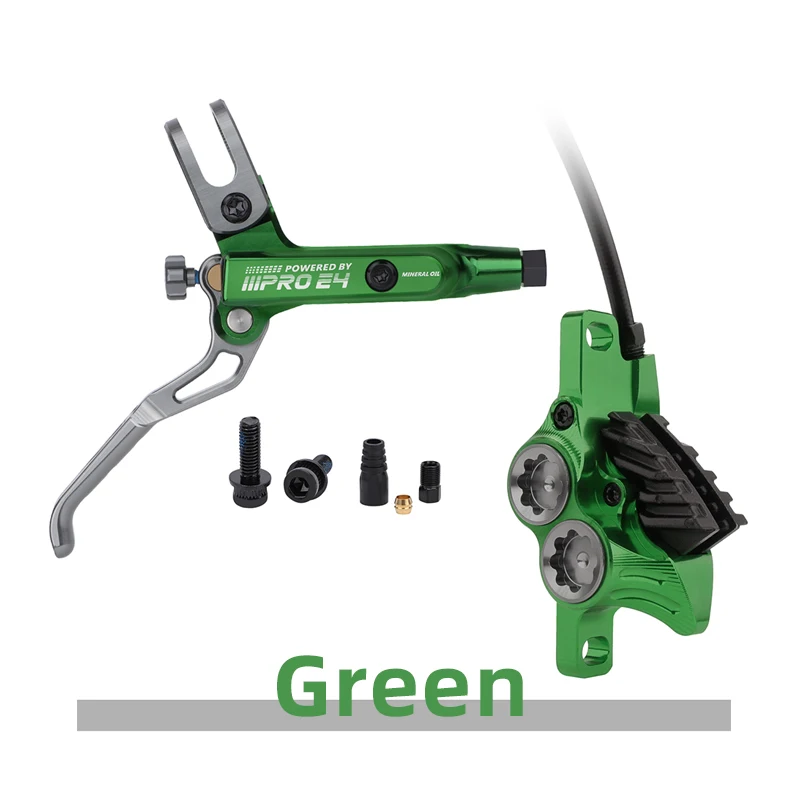

Color: black, red, silver, blue, green, purple
Material: magnesium aluminum alloy
Length:
Front brake 800mm;
Rear brake 1550mm

Brake Pistons: 4 Pistons

Brake Fluid Type: Mineral Brake Fluid

Weight:
about 230g for the front brake;
about 245g for the rear brake;
about 28g for the screw.

Brake For: mountain bikes, DH，AM，folding bikes, electric bikes, etc.

The brakes are the left front brake and the right rear brake

Left hand controls the front brake, right hand controls the rear brake.

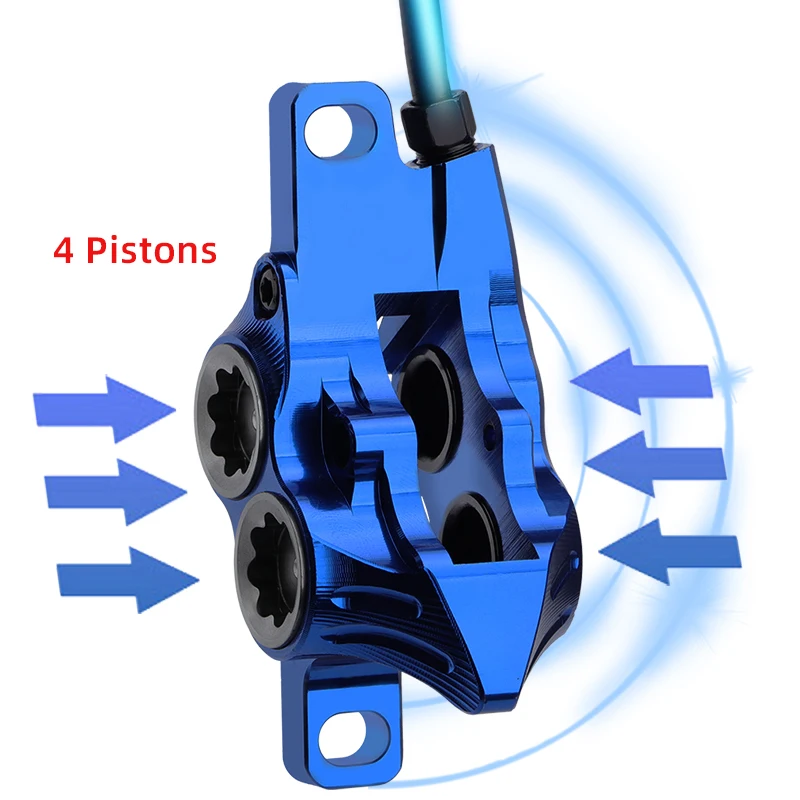

4 Piston brake

Smooth and even braking

Cooling brake pads

The multi-metal copper-based ceramic heat sink improves the heat dissipation performance by 25%.

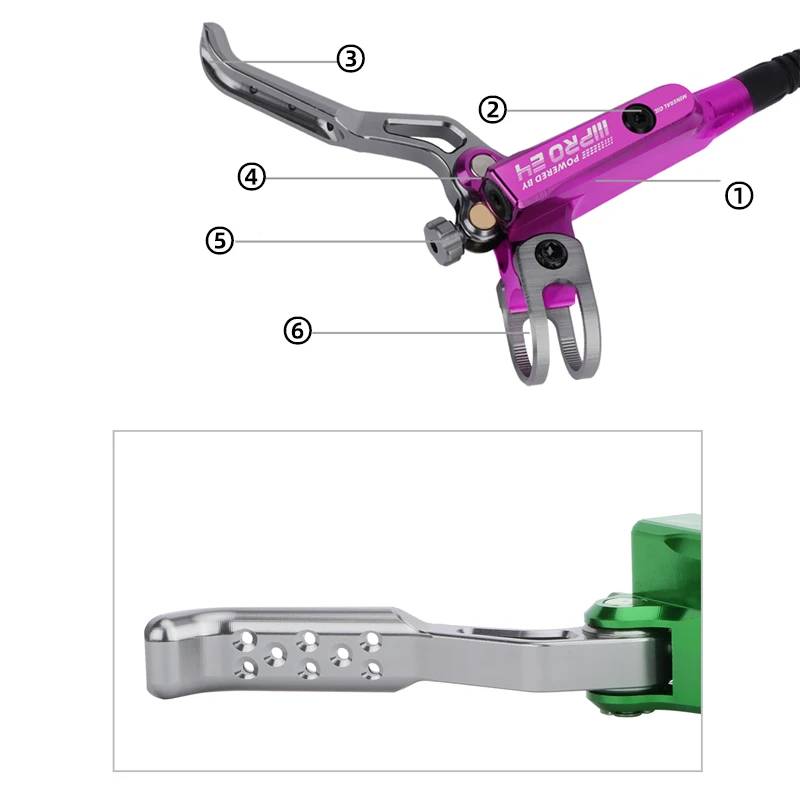

①Cylinder block
②M6 oil filling screw
③CNC anti-skid vent brake lever
④Built-in bearing
⑤ Travel adjustment screw
⑥22.2mm detachable clamp ring

The rear brake adopts the cable routing inside the frame, and the brake lever/caliper has a split structure.

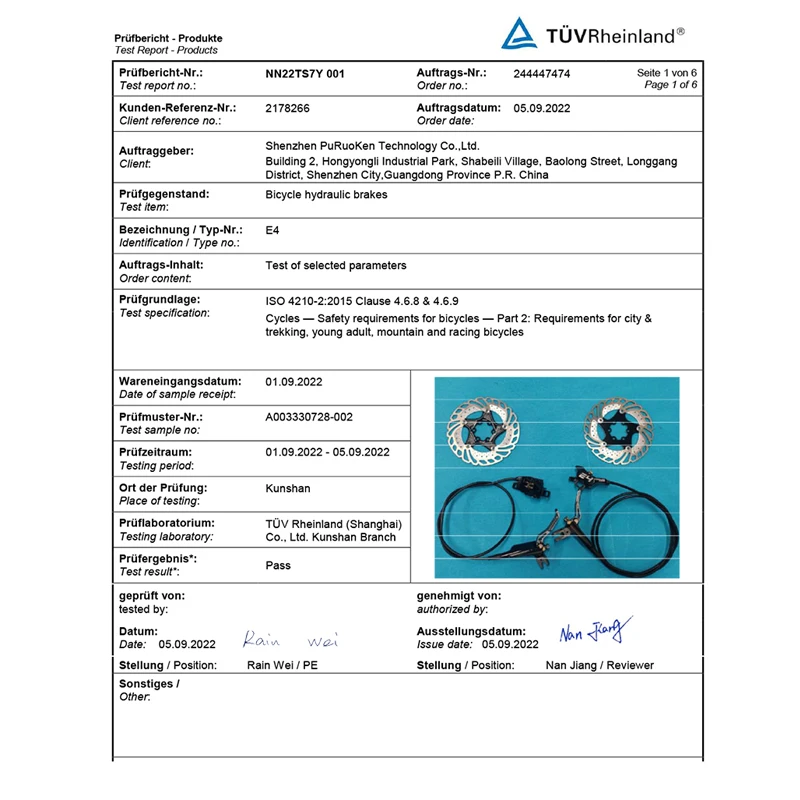

German TUV safety certification, the measured braking force can reach 641N.
