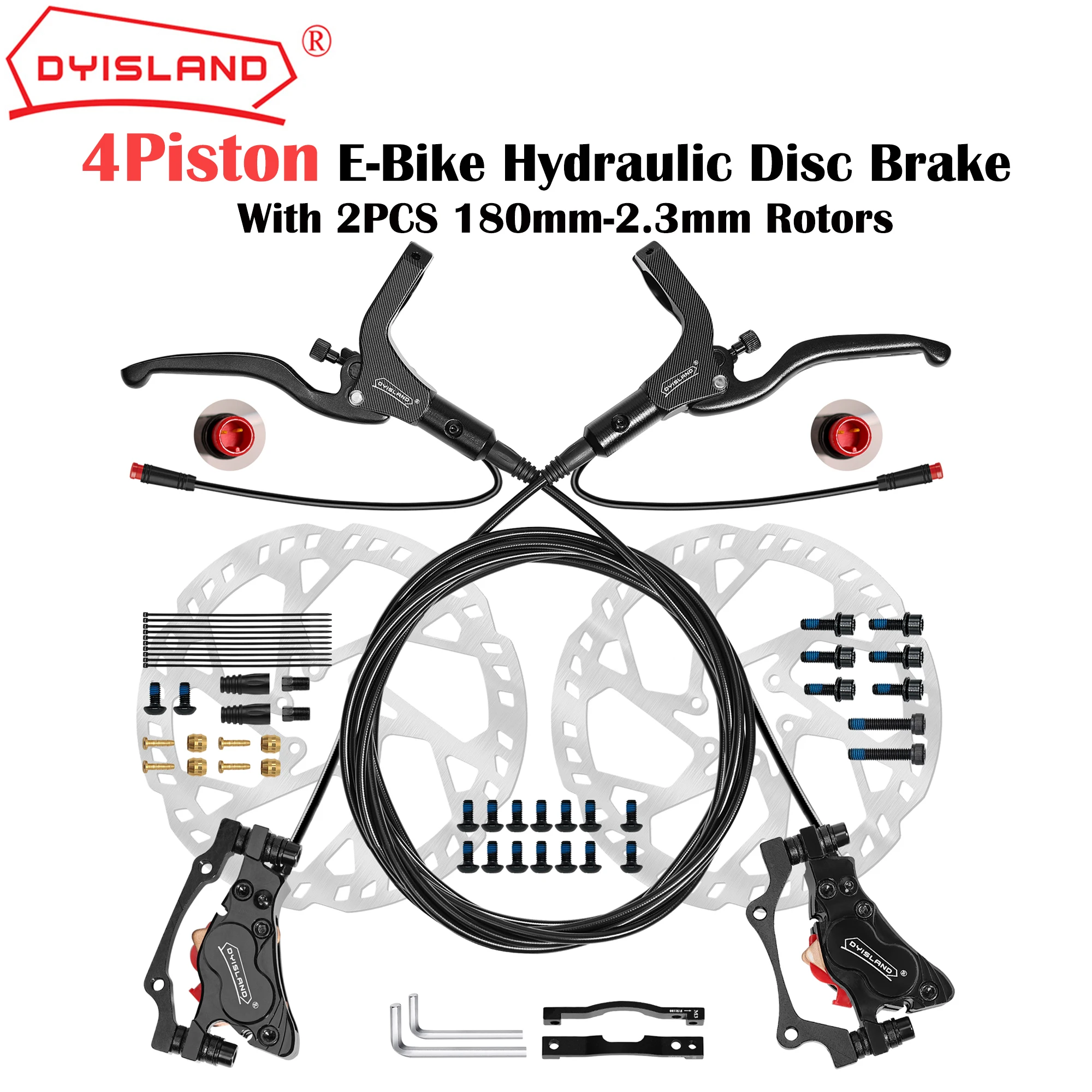

DYISLAND LD4X-300 4Pistons E-Bike Hydraulic Disc Brake 2-PIN&3-PIN Power-Off Hydraulic Disc Brake Set With 2Pcs180mm Rotors

Please note:The left handle controls the front brake, and the right handle controls the rear brake，Can only be installed on the left side.

Brand: DYISLAND
Model: LD4X-300
Weight: 1550g
Process: CNC manufacturing
Material: Aluminum
Features: Adjustable
Color: Black
Connector: 2PIN&3PIN connectors
Hose length: Front: 1100mm, Rear: 1900mm

Brake oil: Mineral oil (the brake oil pipe is already filled with mineral oil)

【Competitive edge】Brake disc thickened design: thickness 2.3mm (ordinary brake disc 1.8mm) Brake pads thickened and enlarged design: MT600 sintered metal material, friction area: 34.7mm long by 20mm wide by 3mm high (ordinary 26mm long by 15mm wide by 1.9mm high), providing stronger braking effect and longer lasting durability for your riding.

【Product specifications】The front brake left handle control brake hose is 1100mm(43.3inch) long, the rear brake right handle control brake hose is 1900mm(74.8inch) long,the hoses are pre-filled with environmentally friendly mineral oil, no need to bleed to use.

【Sensor Control System】Use detachable power-off sensor, the sensor receives a signal when braking and cuts off the power output of the motor to ensure safe riding, Use 2-pin waterproof connector. 【Hint】Check the wiring port is matched.

How to install LD4X-300?

【Four Piston Brakes】Four piston brake calipers provide more powerful and stable braking force. The four-piston brake calipers evenly distribute the braking force to ensure the balance and stability of braking, providing you with a safer and more reliable braking experience.

180mm-2.3mm thick brake discs have stronger braking performance and wear resistance than ordinary 160mm-1.8mm thick brake discs

Sintered metal brake pads are more wear-resistant, and wider brake pads can contact more brake disc area during braking, resulting in better braking performance

【ADJUSTMENT FUNCTION】The brake handle has a screw adjustment function, which allows you to adjust the travel distance of the brake lever according to your personal needs, providing a more comfortable and flexible braking operation and obtaining the best braking feeling.

【Manufacturing process】The brake kit adopts CNC manufacturing process, the brakes and brake levers are made of high quality aluminium, the lightweight design of aluminium also reduces the weight of the whole bike and improves the handling and flexibility.
