Bafang LCD Color Display Instrument 36V 48V 52V P860C 860C P850C 600C C965 DPC18 BF-UART Protocol Bluetooth 750W Motor E-bike
Price range: $71.10 through $248.97
- High-concerned chemical: None
- Type: Display
- Brand Name: Broercok
- Origin: Mainland China
- Order more than 2pcs: Free customization of startup interface and bottom logo
- Only Applicable To: Bafang Mid/Hub Drive Motor Kits
- Communication protocol: BF-UART
- Display Cable Connector/length: 5 PIN Female/ 500MM
- Warranty Time: two years

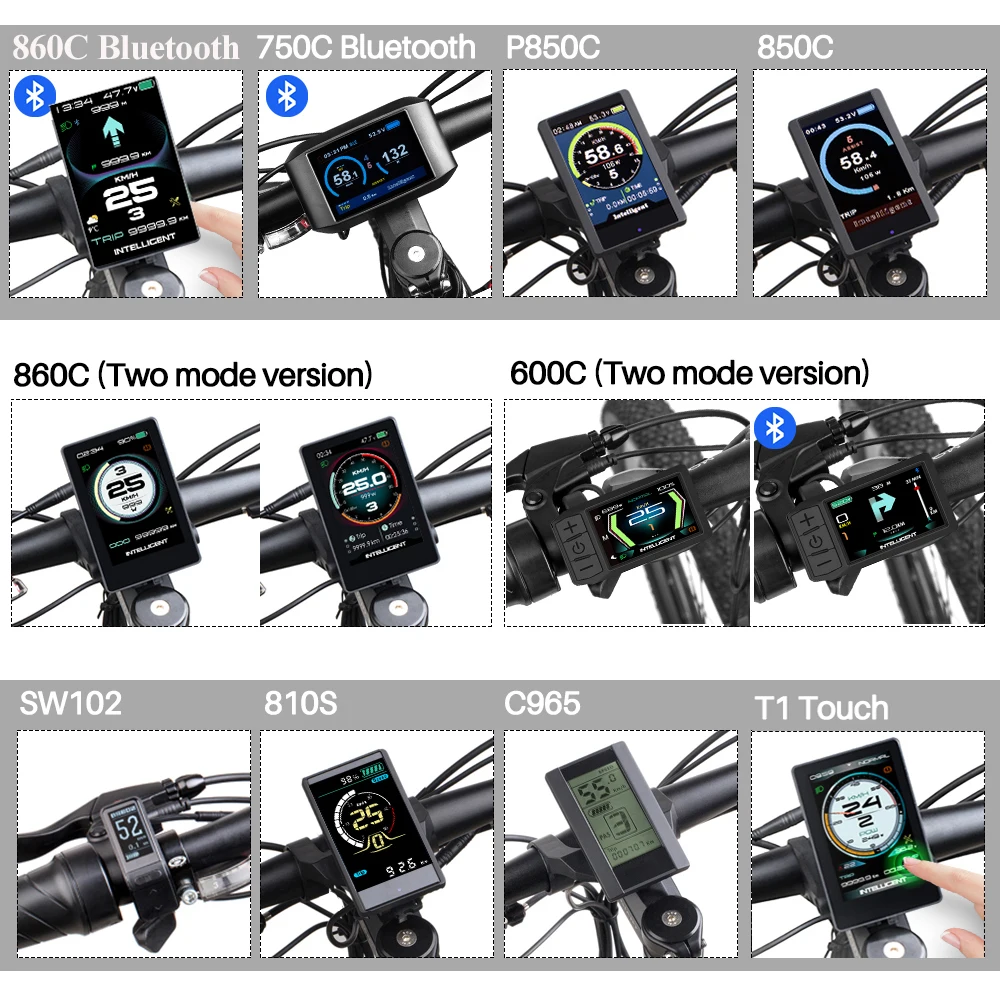

- Multilanguage: 600C /860C/ T1Touch/750C/750CBLU
- Operating Temperature: -20-45℃
- Display With Bluetooth: 860C Blutooth,600C Bluetooth,750C Bluetooth,580C
- Display With Two Mode: 600C,600C Bluetooth,860C ,860C Sports,860C Bluetooth
- MAX Speed: 99KM/H
- Speed Level: 0-3 0-6 0-9
- Display Voltage: 36V 48V 52V
Note：
These Display Only Applicable To Bafang Mid/Hub Drive Motor Kits
- Communication Protocol:BF-UART
Connector: 5PIN Female Circular Connector
If your motor is not Bafang brand,these goods not fit for you,if your motor kits use other Communication Protocol,this display not fit for you too,please contact with us before you make order except you make sure our display fit for you .We can also customize the display.
Sports Mode: Only (860C Sports Mode, 600C Sports and DPC18 Sports Mode) have.
Bluetooth：Only (860C Bluetooth,600C Bluetooth,750C Bluetooth and 580C Bluetooth) have bluetooth functions.
UART has two protocols, BF-UART and 5S-UART, which are not universal. General UART protocols can be determined by the connector，most of the 5pin circular connector uses the BF-UART protocol, while the male connector uses the 5S-UART protocol.The CAN protocol uses triangular connectors.
Caution:
Install the display and button control on the handlebar and adjust its location. Plug it into the controller with power off.
Our advantages：if you order more than 2 instruments, we can customize the startup interface and bottom logo for free.(Customer orders one instruments or didn't contact with us after order without customization service.)
Customizable content：Bottom LOGO for starup display and standby mode.
order =1 or 2 pcs: 10usd fee
order more than 2 pcs: free
All instruments can be customized except DPC18,C961,C965 and SW102
If customization is not requested within 12 hours after placing the order, the instrument will not be customized by default.
Motor Kits,warranty time12 month except phycial damage and wrong operation.
Battery,warranty time12 month except phycial damage and wrong operation.
Accessories,12 month except phycial damage and wrong operation
