BAFANG CAN-protocol 860C 600C 530S DPC18 P860C,Triangle plug,electric bike display for mid M500 M620, motor kits, Bluetooth
Price range: $80.01 through $254.85
- High-concerned chemical: None
- Type: Display
- Brand Name: Broercok
- Origin: Mainland China
- Display Connector: 5 Pin Male Triangular
- Compatible With: Bafang M Series M500 M600 M510 M560 M800 M820
- 5PIN/Main cable length: 500mm
- Communication Protocol: CAN
- Display Voltage: 36V/48V/52V/60V
- Display With Bluetooth: 860C Blue,600C Blue and 580C
- Display With Two Mode: 600C,600C Blue,860C,860C Blue
- Free setting of speed limit: All the version dispaly except DPC18
- Speed limits of DPC18: Acorrding to your e-bike/motor controller
- 6KM/Walk Mode: Long Press" – "
- Headlights Turn On: Long Press "+"
- USB Charger: DC 5V 500mA
- MAX SPEED: Controller by the controller
- Warranty Period: One Year
- Bluetooth Function: Only 600C Bluetooth version have
- Speed Mode: 0-3/0-5/0-9
- Holder Diameter: 22.2/25.4/31.8 mm
Communication protocol: CAN
Highlights:
5pin/main cable length 500mm

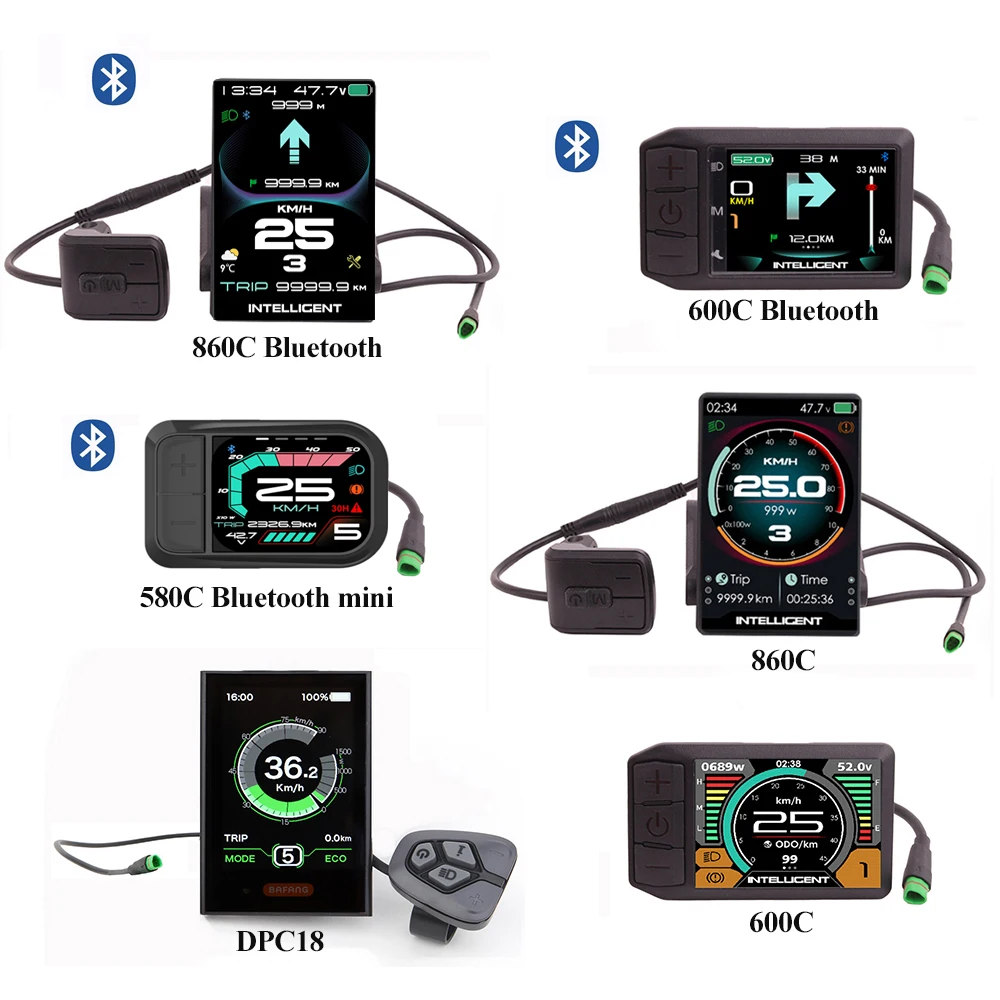

P860C/860C 3.5inch TFT screen(IPS)(320*480 pixel)
600C common/600C Bluetooth 2.4inch TFT screen(IPS 240*320 pixel)
1,USB Ports Used For Charging The Phone（Only P860C/860C have this ports）
2,Real-time Battery Power Show Clearly And Accurately
3,Color Full LCD Display & Waterproof
4,AVG SPEED, MAX SPEED, SPEED(Real-time).
5,Total Kilometer/Mile Distance , Time ,Speed and PAS Level Indicator
6,CE RoHS
7,Bluetooth Function(Only 600C Bluetooth and 860C Bluetooth have this function)
Caution:
Our advantages：if you order more than 2 instruments, we can customize the startup interface and bottom logo for free.(Customer orders one instruments or didn't contact with us after order without customization service.)
Customizable content：Bottom LOGO for starup display and standby mode.
order =1 or 2 pcs: 10usd fee
order more than 2 pcs: free
All instruments can be customized except DPC18,C961,C965 and SW102
If customization is not requested within 12 hours after placing the order, the instrument will not be customized by default.
Motor Kits,warranty time12 month except phycial damage and wrong operation.
Battery,warranty time12 month except phycial damage and wrong operation.
Display,24 month except phycial damage and wrong operation.
Return & Refund:
It is our pleasure to see customers have fun with our products, if you decide to return
the items within 15 days after receipt,we will refund you, the return items must be in
original conditions.
Feedback:
Your satisfaction and positive feedback is very important for us, it will be very kindof you
to leave us 5 stares feedback, if you have any problems, feel free to ask us, we
will do our best to give you service.
