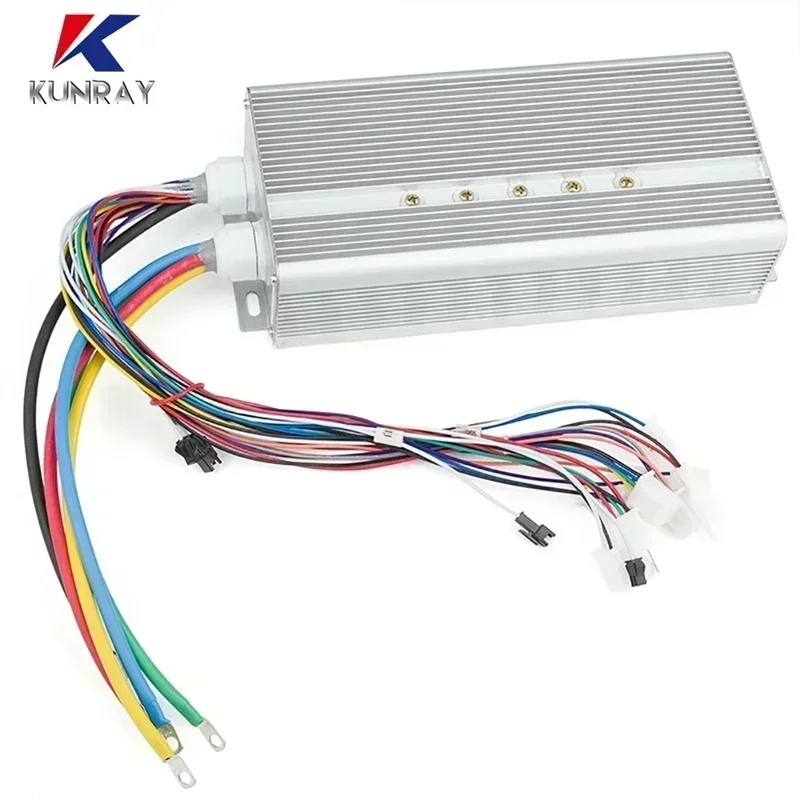

48V 72V 100A 3000W 5000W Ebike Brushless Controller 36Mosfet Controller for Electric Motorcycle Scooter Cargo Motor Kit

Product Details:
48V-96v 50A 2000W
Size: Long 20.5Cm X Width 11.5CM X High 6CM
Mos: Small 24mos
Voltage: 48V-96V
Current: 50A
Power: 2000W
Undervoltage:42V
120Degree

48V-120v 80A 3000W
Size: Long:29CM(11.42inch) Width:11.5CM(4.53inch) High: 6CM(2.36inch)
Mos: 24Mosfet
Voltage: 48V-120V
Current: 80A
Power: 3000W
Undervoltage:42V
120Degree

48V-120V 100A 5000W 36MOS
Size: Long:30CM(11.81inch) Width:11.5CM(4.53inch) High: 6CM(2.36inch)
Mos: Small 36Mosfet

Voltage: 48V-120V
Current: 100A
Power: 5000W
Undervoltage:42V
120Degree

60V-120V 150A 9000W

Size: Long:30CM(11.81inch) Width:11.5CM(4.53inch) High: 6CM(2.36inch)
Mos: Big 36mos
Voltage: 60V-120V 150A
Current: 150A
Power: 9000W
Undervoltage:50V
120Degree

How to connection:

1.Connect motor phase wire,battery wire,electric power lock wire,hall wire and self-study wire.
2.Turn on the battery and power lock,then the motor can work(If the motor is run opposite,please cut off the self-study wire,after motor stop running,then connect the self-study wire.After work 10 seconds,cut off the self-study wire,turn off the power lock.Wait for about 10 seconds,restart,then the motor can be used to work)
3.If you want to use the other functions of the controller,you can connect the function wir


3000W BLDC Controller:





5000W/9000W BLDC Controller:
