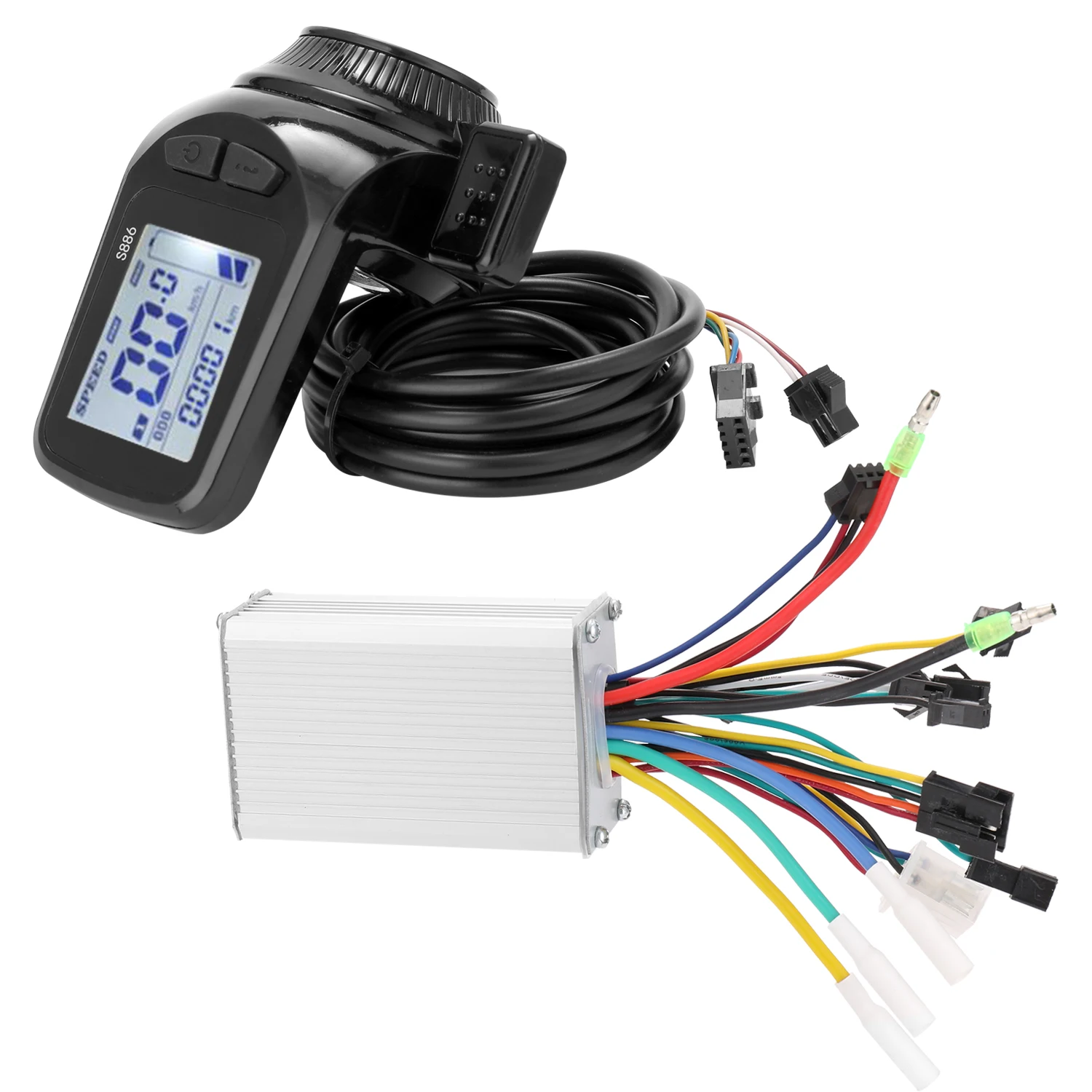

24V-48V 350W Motor Brushless Controller LCD Display Panel Thumb Throttle Electric Bicycles Scooter Brushless Controller Kit S886

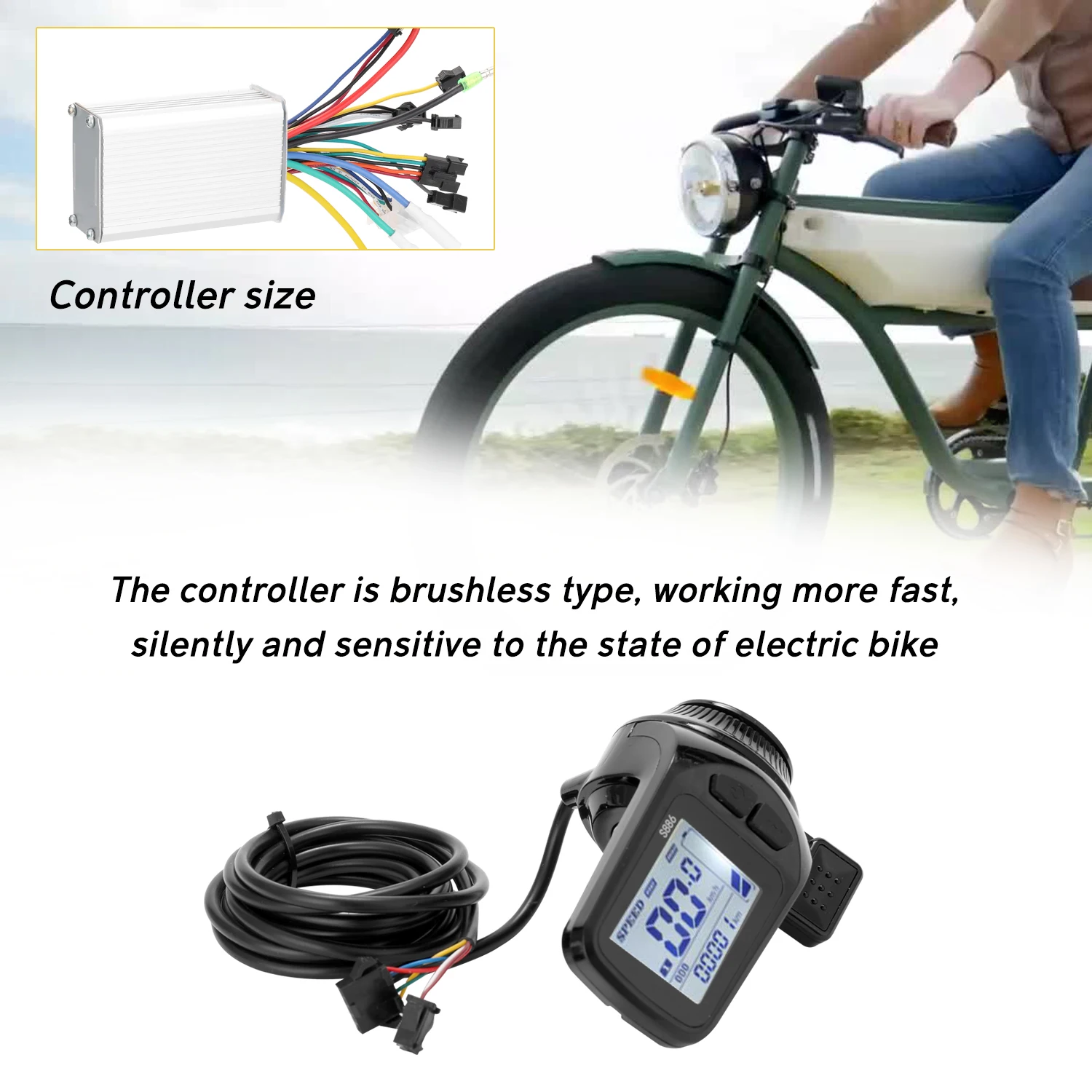

This display adopts fine quality materials, lightweight, rainproof, sturdy and practical. The controller is brushless type, working more fast,silently and sensitive to the state of electric bike.

Features:
This display adopts finequality materials, lightweight, rainproof, sturdy and practical.
LCD display can clearly show the state and data, backlight enables you to see scree clearly in dim environment, buttons for quick operation, easy to use.
The controller is brushless type, working more fast, silently and sensitive to the state of electric bike.
Easy to install and use, comes with mount for LCD display.
Suitable for electric bicycles, scooters etc.

Specification:
Material: Plastics + LCD + Metal
LCD Display Model: S886
Controller Model: S6-65
Type: 3 Types(optional)
Type 1: 24V-48V 250W(limited current 13A)
Type 2: 36V-60V 350W(limited current 15A)
Type 3: 24V-48V 350W(limited current 15A)
Available undervoltage:
Type 1: 19V, 29V, 39V,
Type 2: 29V, 39V, 49V
Type 3: 19V, 29V, 39V,
Waterproof: IP54
Power: 350W
Surface Size: Approx. 67 * 43mm / 2.6 * 1.7in
Display Size: Approx. 33 * 27mm / 1.3 * 1.1in
Holder diameter: 22.3mm / 0.88in
Controller size: 85 * 52 * 30mm / 3.3 * 2.0 * 1.2in
Package size: 200 * 150 * 100mm / 7.9 * 5.9 * 3.9in
Package weight: 318g / 11.3ounce

Packing List:
1 * LCD Display
1 * Controller
