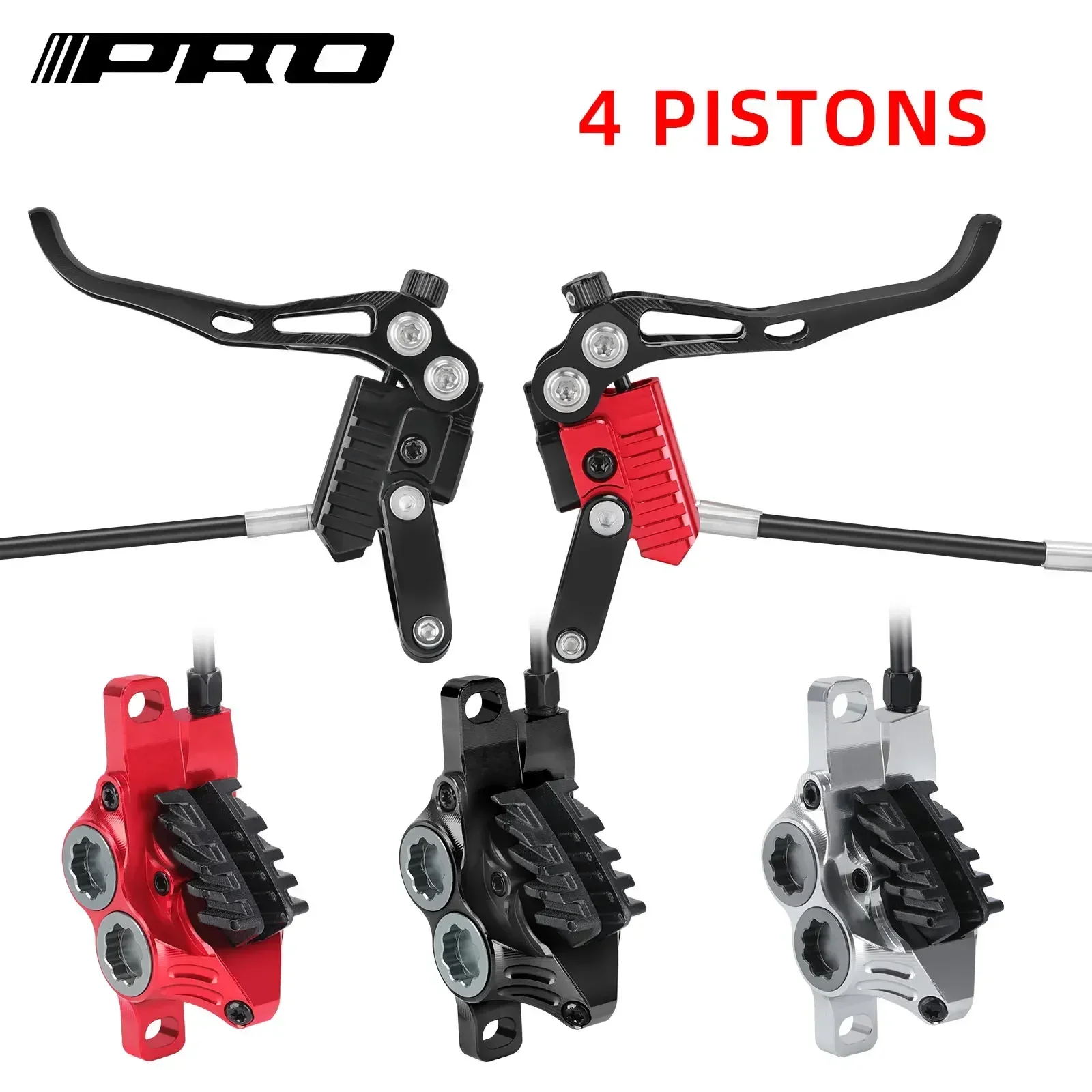

IIIPRO Ultralight 4 Piston Hydraulic Disc Brake Fully Internal Routing Split Oil Brake 800mm/1550mm for MTB Mountain Bike Cyclin

Product name: 4-piston hydraulic disc brake
Model: PEERAGE4
Material: magnesium aluminum alloy
Brake piston: 4 pistons
Brakes: A-pillar (74.2mm) disc brake
Brake hose length: front 800mm/rear 1550mm
Oil: mineral brake oil
Applicable: MTB

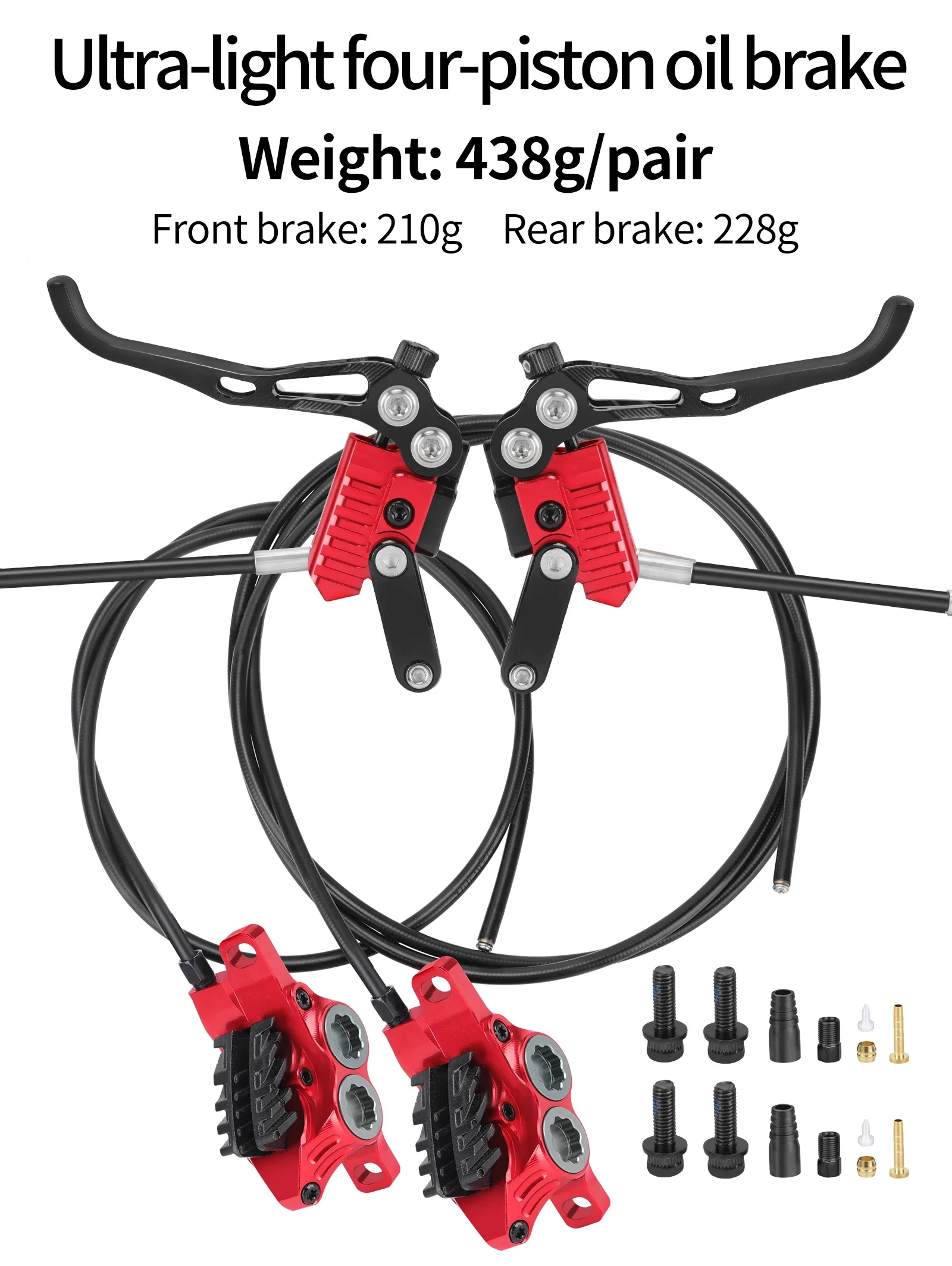

Weight: front brake 210g, rear brake 228g, accessories 36g

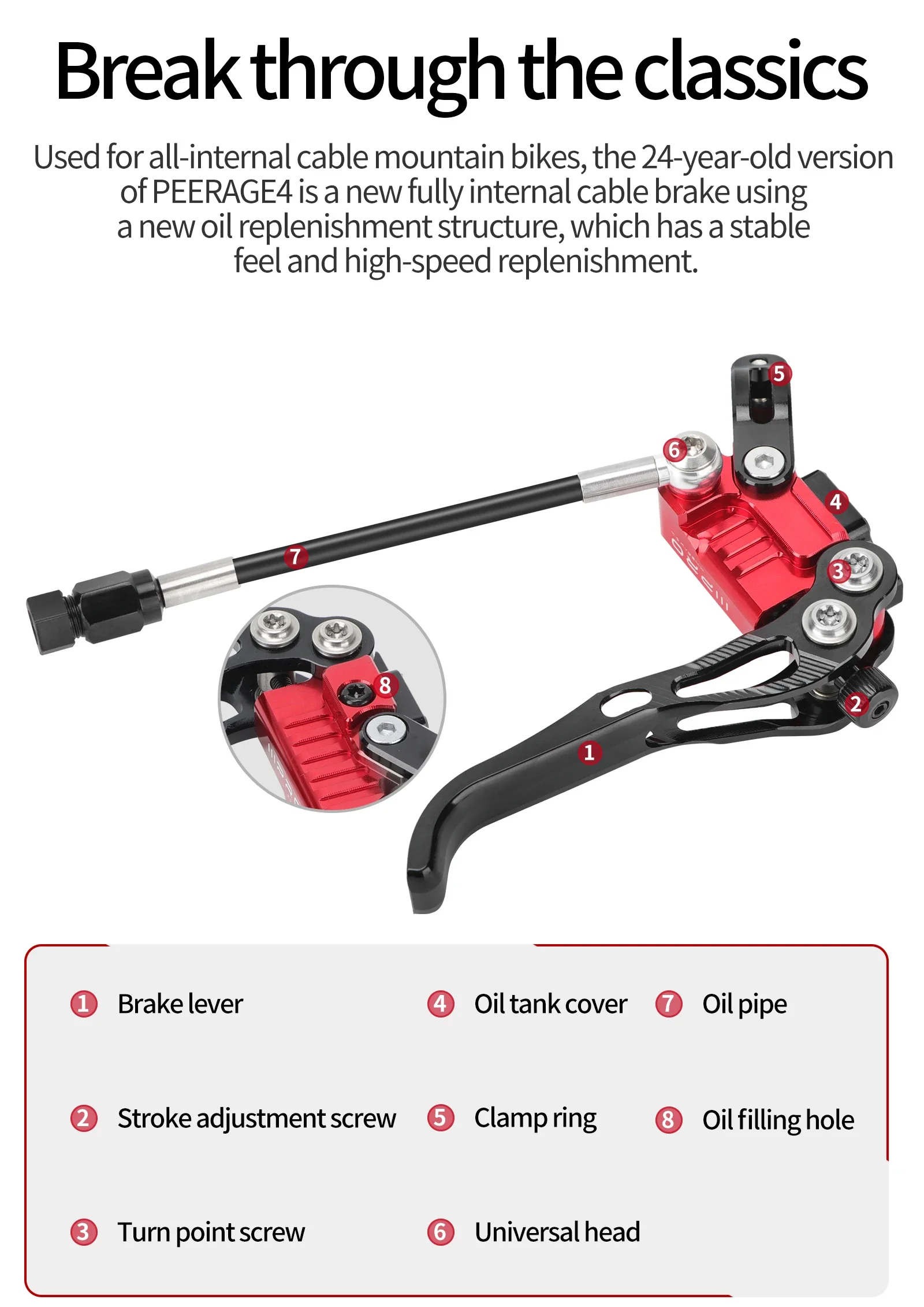

The 2024 version of PEERAGE4 adopts a fully internal cable mountain bike oil brake design. The new oil replenishment structure has the characteristics of stable feel and high-speed oil replenishment. It is used for fully internal cable mountain bikes, and the brake cable can be hidden inside the handlebar. ;

The universal head design of the brake lever can rotate 360 degrees, which is convenient for adjusting the direction of the brake hose from the angle of the frame.

Q1: Is it possible to change the oil pipe on the joystick so that the right joystick controls the rear brake and the left joystick controls the front brake?

A1: This oil brake has a front and rear split design. You can freely match the brake lever and caliper at will. You only need to connect the oil pipe in the direction you need when installing the oil pipe; you can complete the left front brake and right rear brake combination.Or a combination of left rear brake and right front brake will work!

Q2: Are the calipers compatible with 140mm rotors?

A2: This caliper is originally suitable for 160mm rotors. If you want to use 140mm 180mm or 203mm rotors, you will need to use a brake adapter (original brakes do not include 180mm and 203mm adapters)

Note: The universal head design can rotate 360 degrees. It does not mean that the screws are loose. Please do not use a screwdriver to try. Tighten this part, otherwise the universal head may be damaged due to improper operation.
