Electric Bike Controller 24V‑48V 13A Brushless Controller with LCD Display Panel E-scooter Meter Control for 22.5mm Handlebar

Understanding E-Bike Power Systems

The DOACT Electric Bike Controller provides the precise computational power needed to manage your e-scooter’s performance. When upgrading your ride, high-quality Controllers are essential for translating battery output into smooth, reliable motor acceleration. This DOACT unit functions as the central nervous system of your electric vehicle, accepting inputs from the throttle and brake sensors to dictate the exact amount of current delivered to the drivetrain. By utilizing advanced Voltage regulation, it protects your battery from excessive drain while ensuring optimal power delivery across varied terrain.

Designed specifically for 24V to 48V systems rated up to 350W, this brushless unit seamlessly integrates with most standard e-scooter setups. The included harness simplifies the wiring process, making it accessible for both experienced technicians and dedicated DIY enthusiasts. What sets these Controllers apart is the inclusion of an intuitive LCD display panel that mounts directly to 22.5mm handlebars. This meter control provides real-time feedback on speed, battery life, and assist levels, allowing riders to monitor their system’s health at a glance.

Whether you are building a custom commuter scooter from scratch or replacing a faulty module, this system offers the reliability and precision required for daily urban transit. The robust construction withstands the vibrations and impacts of city riding, while the lightweight 0.360 kg design ensures it does not weigh down your chassis. By upgrading to this DOACT unit, you ensure your e-bike responds instantaneously to your commands, providing a safer, more enjoyable riding experience.

The Science of Brushless Motor Controllers

Electric bike Controllers operate using a technique known as Pulse Width Modulation (PWM) to regulate the speed and torque of the motor. In a Brushless Motor system, the controller must precisely time the energization of the motor’s phase wires. The DOACT unit excels at this electronic commutation, reading the motor’s rotor position via Hall sensors and firing the appropriate electromagnetic coils in sequence. This precise timing ensures maximum efficiency, translating more of your battery’s stored energy into forward momentum rather than waste heat.

When discussing Wattage and Amperage, the 13A rating of this controller dictates the maximum current it can safely handle before risking overheating. For 250W and 350W motors, a 13-amp limit provides an excellent balance of brisk acceleration and thermal safety. The internal MOSFETs are selected to minimize resistance, which directly correlates to a cooler running system and a longer operational lifespan.

Compatibility Across Voltage Ranges

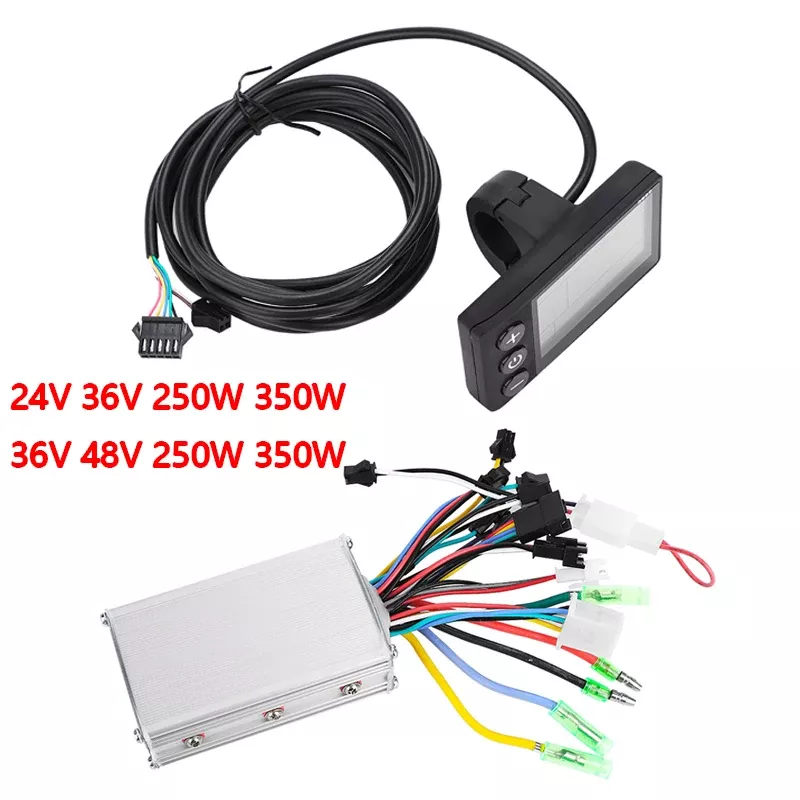

This DOACT model is available in two primary configurations: a 24V 36V 250W 350W variant and a 36V 48V 250W 350W variant. It is crucial to select the module that matches your specific battery and motor combination. Mismatching a controller to a higher voltage battery than it is rated for will immediately destroy the internal capacitors. Conversely, using a 48V controller on a 24V battery may result in under-voltage protection triggering prematurely, preventing the system from engaging.

By offering these distinct options, DOACT ensures that whether you have a lower-voltage neighborhood cruiser or a higher-voltage fast commuter, there is a matching brain for your build. The wide compatibility makes these Controllers a favorite among repair shops and hobbyists who work on a variety of electric platforms. The standardized phase wire and Hall sensor pinouts further simplify the process of swapping out an older, malfunctioning unit.

The Handlebar LCD Meter Control

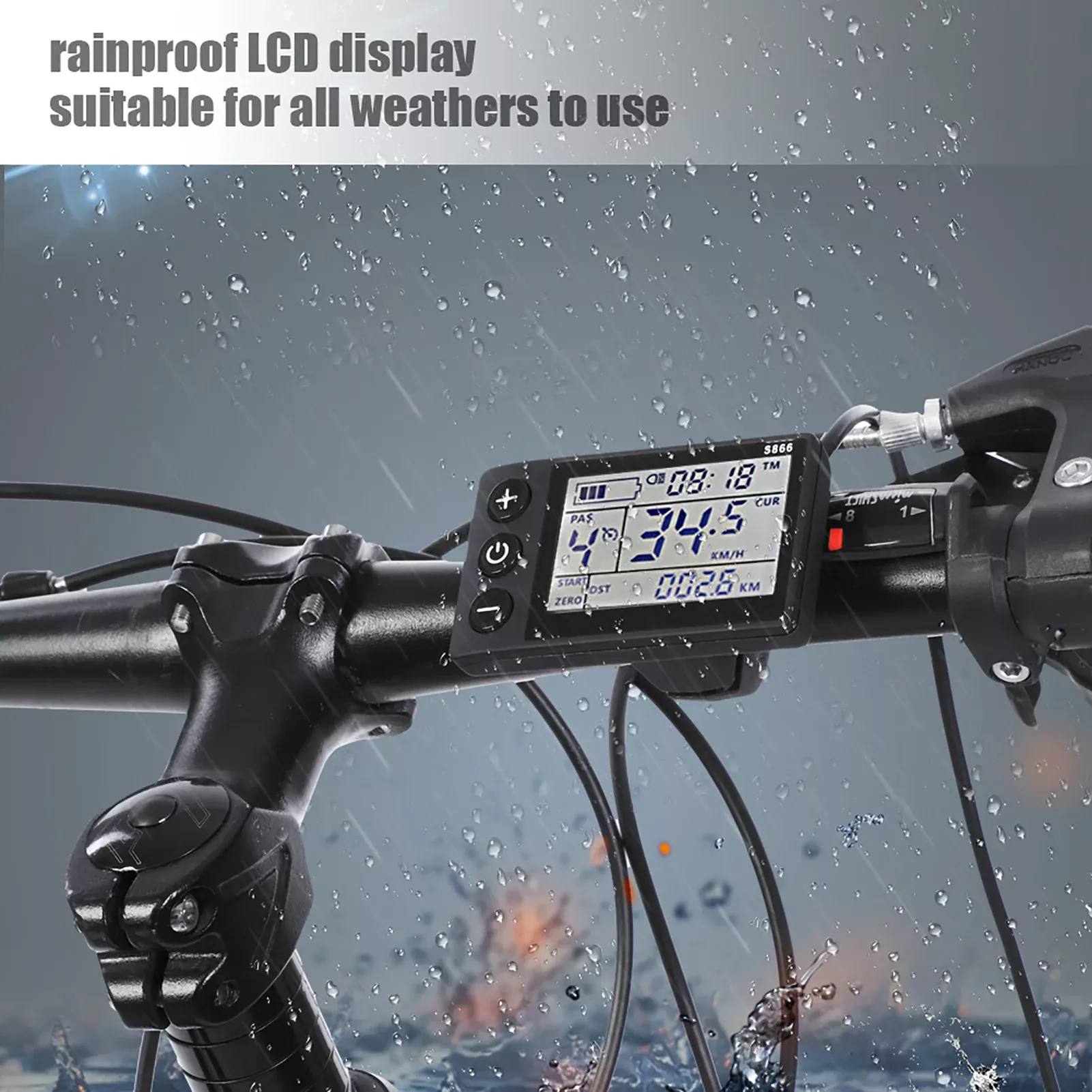

The included LCD display panel is far more than a simple speedometer; it is the primary interface between the rider and the motor Controllers. Designed to clamp securely to 22.5mm handlebars, the screen is positioned directly in the rider’s line of sight. The display communicates with the main unit via a secure data cable, sending rider commands—such as throttle input and assist level—while receiving real-time telemetry from the motor and battery.

The meter control allows users to adjust the maximum speed limit, set a wheel size for accurate odometer readings, and configure the number of assist levels available. Having immediate access to this data is vital for managing range. By keeping an eye on the real-time Voltage readout, riders can gauge exactly how much further they can push their battery before needing a recharge, preventing the dreaded walk-home scenario.

Installation and Harness Integration

Installing a new controller can be intimidating, but the DOACT kit mitigates this with a thoughtfully designed wiring harness. The harness acts as the intermediary between the controller’s logic board and the external components. High-quality connectors are used for the motor phase wires, Hall sensors, throttle, and brake levers. These connectors are typically keyed, meaning they can only be plugged in one way, preventing accidental short circuits.

When routing the harness, it is important to secure the wires away from moving parts and extreme heat sources like the braking rotors. The compact dimensions of the main unit—15 x 13 x 7 cm—allow it to be tucked away neatly within the frame or beneath a deck plate. Despite its small footprint, the housing provides excellent environmental protection, shielding the sensitive electronics from moisture and dust kicked up during daily rides.

Optimizing Your E-Scooter Experience

Upgrading your e-scooter’s brain transforms the entire feel of the ride. Sluggish, delayed throttle responses are replaced with crisp, immediate power delivery. The precision offered by these Controllers means the motor engages smoothly from a dead stop, eliminating the jerky lurching common with worn-out or inferior modules. This smooth engagement is not only more comfortable for the rider but also reduces mechanical stress on the chain, belts, and gears.

For commuters, the ability to fine-tune the power output via the LCD panel is a game-changer. You can dial back the aggressive power settings for rainy days or crowded pedestrian areas, then switch to a higher performance mode when you have open road ahead. The tactile buttons on the meter control allow for quick adjustments without taking your hands off the grips, ensuring safety remains a priority.

Maintenance and Troubleshooting

While modern brushless Controllers are largely maintenance-free, keeping them clean and dry will significantly extend their lifespan. Periodically inspect the wiring harness for any signs of abrasion, particularly where cables rub against the frame. If you notice intermittent power loss or fault codes appearing on the LCD display, the first step is to check all harness connections for corrosion or looseness.

A common issue with e-scooter repairs is a faulty Hall sensor connection, which will cause the motor to stutter or run roughly. The DOACT meter control often displays specific error codes that point directly to the failed component, making diagnostics much simpler. Understanding how to read these codes empowers the rider to perform basic maintenance without always needing to visit a professional.

Thermal Management and Safety

Heat is the primary enemy of electronic components. The aluminum housing of the DOACT unit serves as a heat sink, drawing thermal energy away from the MOSFETs. If you regularly climb steep hills or carry heavy loads, the controller will naturally generate more heat. Ensuring the unit is mounted in a location with adequate airflow will prevent thermal protection circuits from engaging and throttling your power.

The controller plays a crucial role in rider safety through brake cut-off sensor integration. This ensures the motor instantly disengages the moment the brake lever is pulled, preventing the dangerous scenario of the motor fighting the brakes. The inclusion of a high-concerned chemical rating of none guarantees that the materials used in the construction of the housing and harness are safe for handling. This compliance ensures that you are not exposing yourself to harmful substances during installation or routine maintenance.

In the rapidly evolving landscape of personal electric vehicles, the quality of your electronic components dictates the quality of your ride. A powerful motor and a high-capacity battery are only as good as the unit managing the flow of electricity between them. The DOACT Electric Bike Controller bridges that gap flawlessly, offering a robust, feature-rich, and highly reliable solution for 24V to 48V e-scooter platforms. By combining a durable wiring harness, intelligent thermal management, and a clear, informative handlebar-mounted LCD display, it stands as a premier choice for your next build or repair.

• ⚡ Compatibility: Available in 24V/36V and 36V/48V configurations for 250W and 350W motors.
• 🖥️ Display Panel: Features an intuitive LCD meter control designed for 22.5mm handlebars.
• ⚙️ Wiring Harness: Includes a comprehensive harness with keyed connectors for safe, easy installation.
• 🔋 Power Management: 13A current rating balances brisk acceleration with thermal safety.
• 🛡️ Safety Features: Integrated brake cut-off and over-speed protection enhance ride security.
• 🧠 PWM Technology: Utilizes precise electronic commutation for maximum motor efficiency.
• 🌦️ Durable Construction: Compact 15 x 13 x 7 cm aluminum housing protects against moisture and impact.
• ⚖️ Lightweight: Total package weight of just 0.360 kg adds minimal bulk to your e-scooter.
• 🔧 Maintenance: Fault code diagnostics via the LCD screen simplify troubleshooting.
• 🚲 Customization: Adjustable throttle ramp-up and speed limits allow for a personalized ride.
