36V/48V/52V 1000W-1200W 35A 1200W-1800W 45A 48V/52V/60V72V 1500W-2800W 45A 3-mode Sine Wave ebike Controller and LCD Display

HOME / PRODUCTS / 36V/48V/52V 1000W-1200W 35A 1200W-1800W 45A 48V/52V/60V72V 1500W-2800W 45A 3-mode Sine Wave ebike Controller and LCD Display

Electric Bike Display And Controller Components

Price range: $59.97 through $207.00

Backed by our Zoomies Guarantee

Spend $150 after offers & coupons and we cover the shipping, no matter how large your order is!

Welcome coupon & Points are deferred during sales.

Secure & Private Transaction Sold & Shipped by Zoomies

FREE SHIPPING

OVER $1000

SECURE

CHECKOUT

GUARANTEED

AUTHENTIC

REFERALS

GET REWARDED

Description +

High-concerned chemical: None
Type: Display
Brand Name: RisunMotor
Origin: Mainland China

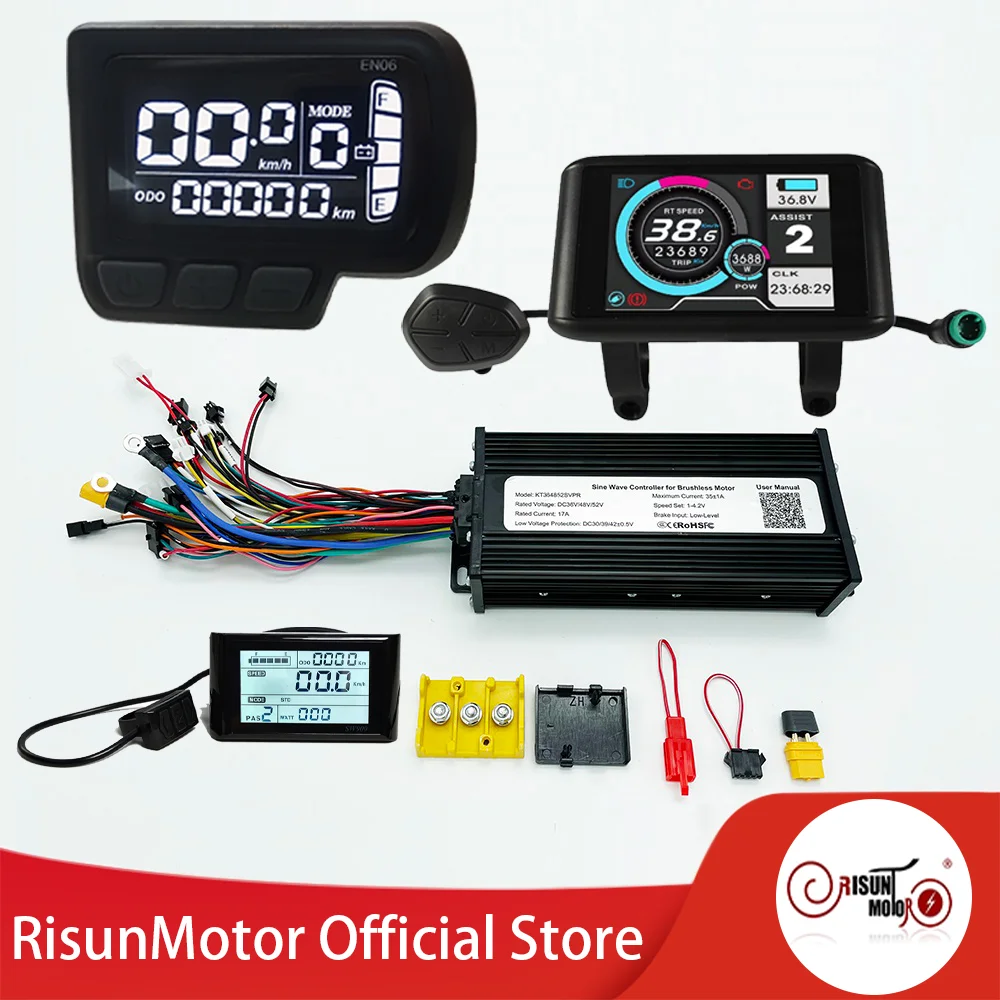

36V 48V 52V 1000W-1500W 35A / 36V 48V 52V 1200W-1800W 45A / 48V 52V 60V 72V 1500W-2800W 45ASine Wave3-mode IntelligentController with UKC1 SW900 EN06 LCD Display for eBike Electric Bike

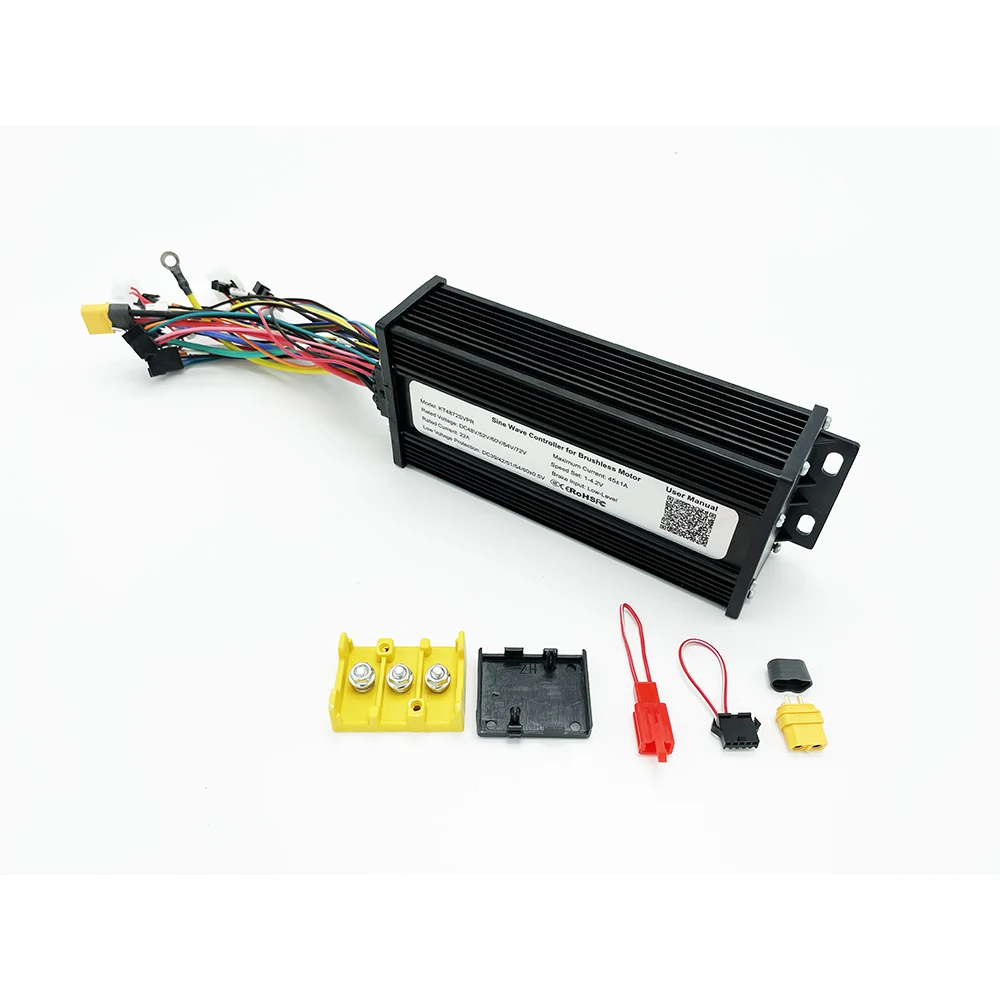

Parts Including:

15 MOSFET 36V-52V 35A, 36V-52V 45A ,8V 52V 60V 72V Universal Voltage 1500W-2800W Intelligent 3-mode Sine Wave Controller

2. 36V, 48V, 52V UKC1 Colorful Display (Optional)

Why 3-mode Controller?

Support Hall Sensor Mode (Sine Wave Mode)

Support Non-Hall Mode (If your motor hall sensor burned or not match, controller will still work in square wave mode)

Support 60-120 degree motor hall sensor adaptive recognition.

Self-learning Function: Even wrong 3-phase combination between motor and controller, doesn’t matter, above self-learning process can correct it!

Advantage:

1. Sine Wave Controller which support 3-mode (hall sensor mode, non-hall mode, self-learning) and smart match with each motor through self-learning, works with high efficiency, less noise, and lower energy consumption, which makes your electric vehicles or electric motorcycles more comfortable and easier to control, give you best pedal experience

2. Universal Input Voltage Range: 36V/48V/52V/72V

3. Work with or without display

4. Parameter setting via display

5. All protection make it long life and safe: over/under voltage, over current, over load, over heating, anti-runaway, locked-motor protection

6. Multi functions: Work with hall sensor mode or non-hall mode, smart match with different motor, 5-speed level for throttle and PAS, Speed limit, Reverse, Cruise, Push Assistant, Anti-thief, Regenerative Braking, Electric Braking and etc.

7. Best heat sinking with Aluminium Case

8. Black anodized Aluminium Controller Case against scratch

Technical Data:

Technical Data of the 48 V 60V 72V Controller:

1. Rated Power: 48V 1056W/ 52V 1144W/ 60V 1320W/ 72V 1584W
2. Peak Power: 48V 2160W/ 52V 2340W/ 60V 2700W/ 72V 3240W
3. Brake: Low Voltage Brake
4. Alarm: Low Voltage Alarm
5. Rotor Position Detecting Method: Hall sensor
6. Size: 212×86.5×48.5mm
7. Net Weight: 610g
8. Waterproof Grade: IP65

Technical Data of the 36 V 48V 52V 35A Controller:

1. Rated Power: 36V 612W/ 48V 816W/ 52V 884W
2. Peak Power: 36V 1260W/ 48V 1680W/ 52V 1820W
3. Brake: Low Voltage Brake
4. Alarm: Low Voltage Alarm
5. Rotor Position Detecting Method: Hall sensor
6. Size: 212×86.5×48.5mm
7. Net Weight: 610g
8. Waterproof Grade: IP65

Technical Data of the 36 V 48V 52V 45A Controller:

1. Rated Power: 36V 792W/ 48V 1056W/ 52V 1144W
2. Peak Power: 36V 1620W/ 48V 2160W/ 52V 2340W
3. Brake: Low Voltage Brake
4. Alarm: Low Voltage Alarm
5. Rotor Position Detecting Method: Hall sensor
6. Size: 212×86.5×48.5mm
7. Net Weight: 610g
8. Waterproof Grade: IP65

FAQ:

1. How shall I match my motor for first time use? (Very Important)

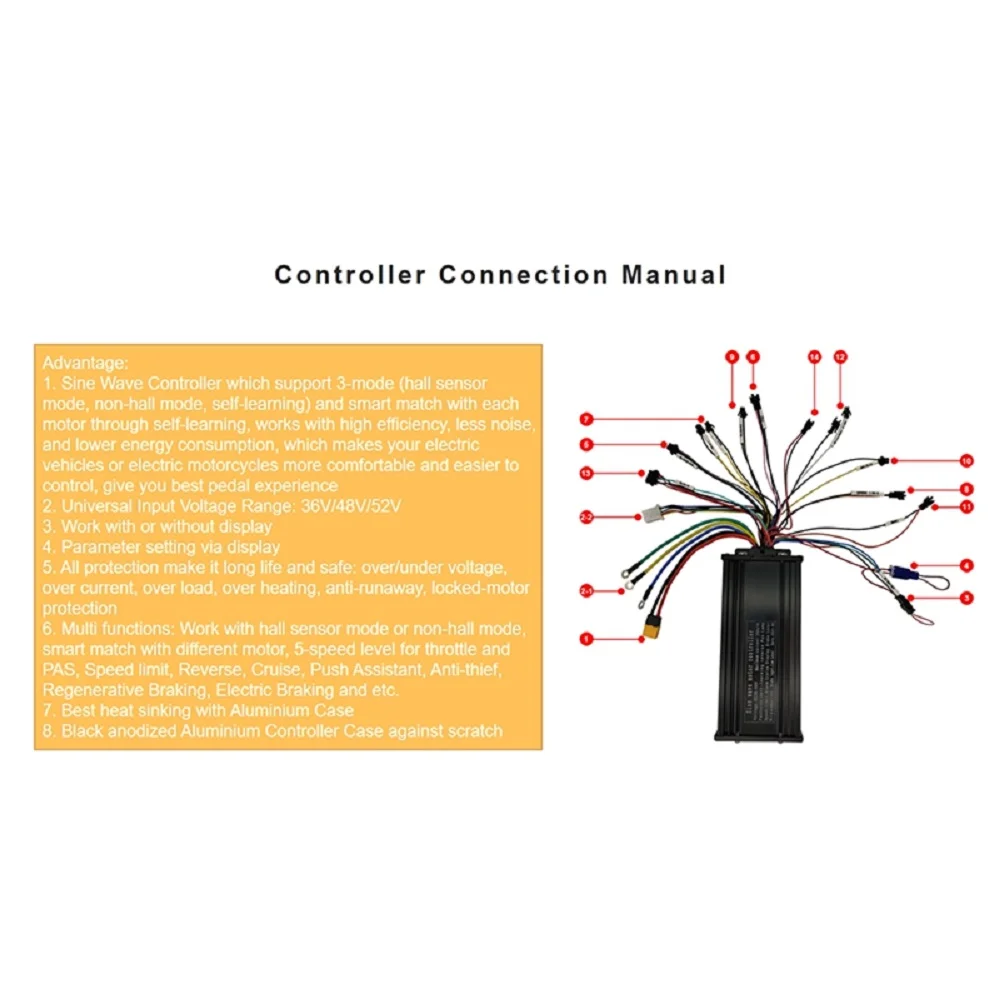

(Please checkController Connection Diagram and Manual, Page 1)

1). Lift your motor wheel off ground (very important)

2). Connect Self-learning plug 6-8 seconds

3). You will see motor wheel rotate slowly

4). Please check whether rotation direction is correct

(a). If correct direction, then keep 6-8 seconds, then disconnect

(b). If reverse direction, then disconnect and plug again till get correct rotation direction, then keep 6-8 seconds, then disconnect

5). Motor and Controller Pairing finished!

2. Can I use this controller without display?

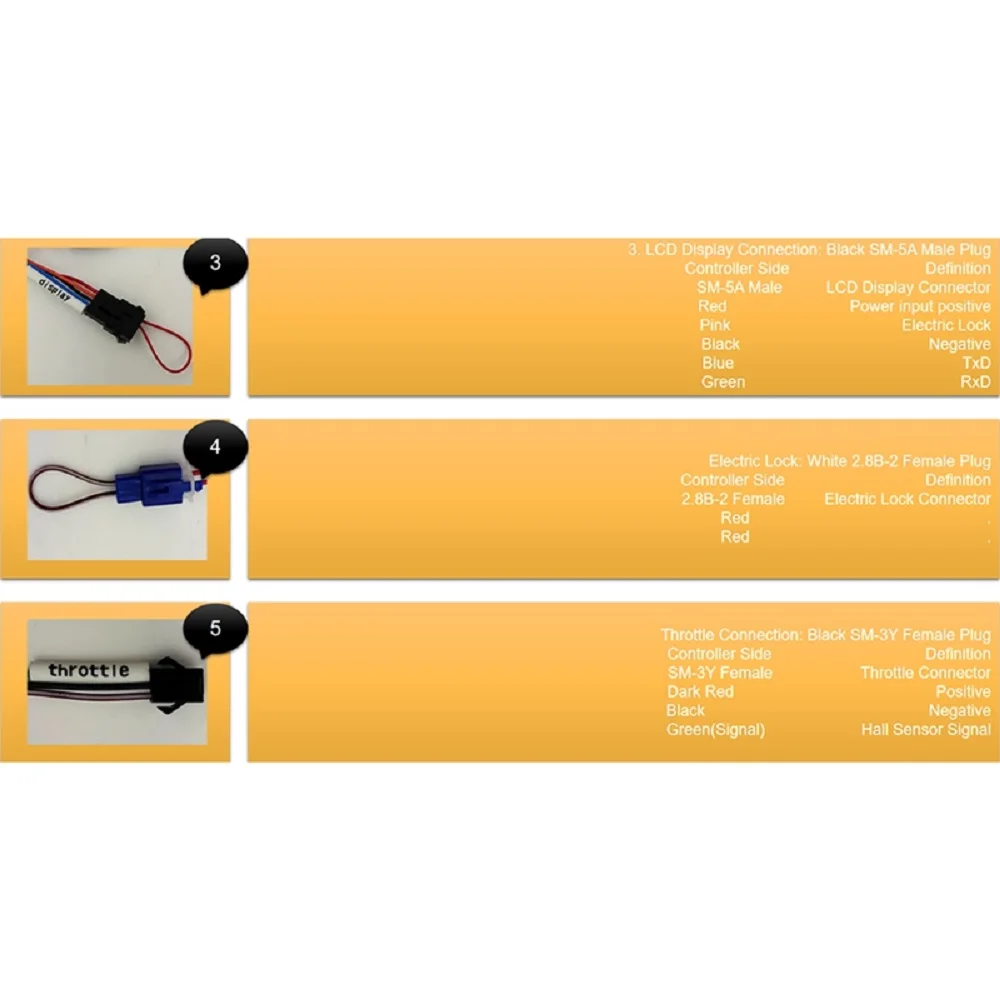

Yes, you can use this controller without display, just need to connect jumper connector (Please checkController Connection Diagram and Manual, Page 4, point No.3)
